H2260FNL

Description：PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:14d67a3def6b Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max)：0.236" (5.99mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

H2260FNL

Overview

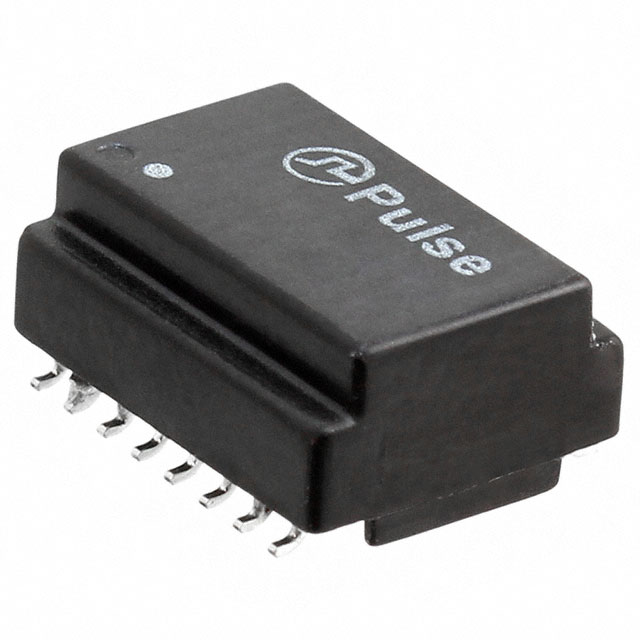

The H2260FNL is a single-port LAN transformer module designed for 100Base-TX applications with Power over Ethernet (PoE) support. It features an SMD/SMT termination type and operates within a frequency range of 1 MHz to 125 MHz. The component has an inductance of 350 uH, a primary coil impedance of 0.65 Ohms, and an insulation voltage of 1.5 kV. Physical dimensions are 12.7 mm in length, 9.09 mm in width, and 5.99 mm in height. It functions unshielded and supports a minimum operating temperature of -40 C and a maximum of +85 C.

Feature Summary

Supports 10/100 Base-T PoE standards for integrated power and data transmission
Single-channel configuration optimized for one-port network interfaces
Surface-mount design suitable for automated assembly processes

Applications

100Base-TX Ethernet network interface cards
PoE-enabled network switches
VoIP telephones and access points

Procurement Notes

Verify the specific RoHS compliance details through official documentation before integration. Confirm that the unshielded construction aligns with your electromagnetic interference requirements. Ensure the surface-mount footprint matches your PCB layout constraints. Check for any recent product change notices regarding manufacturing updates or material substitutions.

Selection Notes

Select this component when designing for 100Base-TX speeds requiring PoE capability. Compare against non-PoE variants like H1260NLT if power delivery is not needed. Consider the HX2260FNL if extended temperature ranges or different packaging options are required. Verify that the 1.5 kV isolation voltage meets your safety standards.

Part Context

This part belongs to the Pulse Electronics audio and signal transformer family, specifically categorized under LAN transformers. It is distinct from Gigabit solutions like the H6062FNLT which supports 10/100/1000 Base-T. The H2260FNL is tailored for Fast Ethernet applications rather than higher-speed data links.
