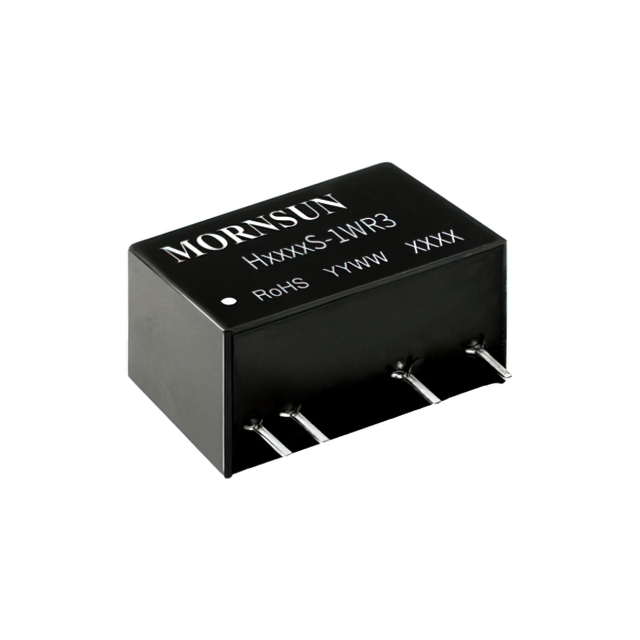

H2409S-1WR3

H2409S-1WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER1. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for H2409S-1WR3

• Description：ISOLATED MODULE DC DC CONVERTER1
• Series：H_S-1WR3 (1W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：111mA
• Power (Watts)：999 mW
• Voltage - Isolation：6 kV
• Applications：ITE (Commercial), Medical
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：60601-1; 62368-1

DC DC Converters datasheet and documents for H2409S-1WR3
