H2B1BE1A1B345L

Antennas RF Overview

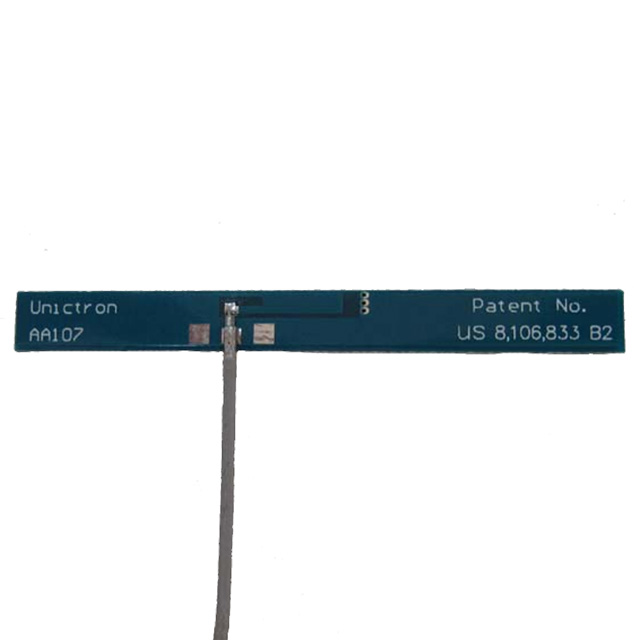

The H2B1BE1A1B345L is a surface-mount RF antenna manufactured by Unictron Technologies Corporation, designed for wireless communication applications. It operates within the UHF frequency group, specifically targeting the 2GHz to 3GHz range with a center frequency of 2.442GHz. The component supports IEEE 802.11b/g/n Wi-Fi standards and incorporates an I-PEX MHF1 (U.FL/UMCC) connector interface. This configuration allows for direct integration into compact electronic devices requiring reliable high-frequency signal transmission.

Antennas RF Feature Summary

• Supports IEEE 802.11b/g/n Wi-Fi protocols
• Features an integrated I-PEX MHF1 connector interface
• Designed for surface-mount installation

Antennas RF Applications

• Wi-Fi enabled consumer electronics
• IoT devices operating in the 2.4GHz band
• Wireless communication modules

Antennas RF Procurement Notes

Verify the specific connector mating requirements against your design schematic, as this component utilizes an I-PEX MHF1 interface. Confirm that the 2.442GHz center frequency aligns with your target regulatory compliance and operational bandwidth. Ensure the surface-mount footprint matches the manufacturer's recommended land pattern to guarantee mechanical stability and electrical performance during assembly.

Antennas RF Selection Notes

Select this model when a dedicated Wi-Fi antenna with a built-in coaxial connector interface is required for space-constrained designs. It is suitable for applications needing support for multiple 802.11b/g/n standards within the 2GHz to 3GHz spectrum. Consider its surface-mount form factor for automated manufacturing processes and compatibility with standard RF testing equipment utilizing U.FL connectors.

Antennas RF Part Context

This component belongs to Unictron Technologies Corporation's portfolio of antennas and antenna modules for wireless communications. The manufacturer specializes in designing passive components and piezoelectric ceramic elements for various electronic applications. The H2 series typically includes solutions tailored for modern wireless connectivity standards, focusing on reliability and compact integration for mobile and IoT hardware.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. When evaluating alternatives, ensure the replacement supports the same I-PEX MHF1 interface and covers the 2.442GHz center frequency with compatible 802.11b/g/n performance characteristics.
