H2B1WD1A3B0200

Antennas RF Overview

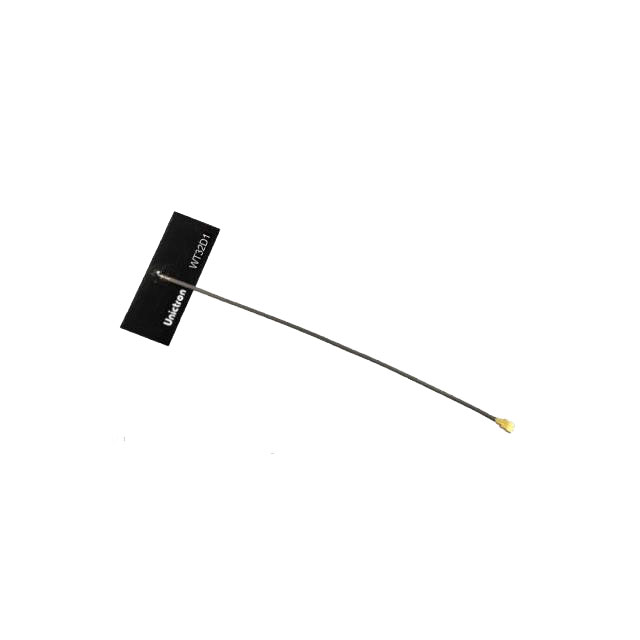

The H2B1WD1A3B0200 is a triple-band RF antenna designed for Wi-Fi applications, manufactured by Unictron Technologies Corporation. It supports the 802.11a/b/g/n/ac/ax standards, covering Wi-Fi 6 and Wi-Fi 6E protocols. The primary frequency range spans from 2442.5 MHz to 6525.0 MHz. The component features a gain of 3 to 4 dBi and a Voltage Standing Wave Ratio (VSWR) of 2:1. It utilizes an I-PEX MHF1 connector interface and employs adhesive mounting for surface installation.

Antennas RF Feature Summary

• Supports triple-band operation for 802.11a/b/g/n/ac/ax standards including Wi-Fi 6 and Wi-Fi 6E
• Utilizes I-PEX MHF1 connector interface for signal transmission
• Employs adhesive mounting method for secure surface attachment

Antennas RF Applications

• Modem devices
• Wireless network infrastructure
• Wi-Fi 6 enabled terminals
• Wi-Fi 6E compatible hardware

Antennas RF Procurement Notes

Verify that the specific I-PEX MHF1 connector variant matches the host board layout requirements. Confirm adhesive compatibility with the target substrate material to ensure mechanical stability during operation. Cross-reference the frequency range specifications against the intended regulatory domain to ensure compliance with local wireless transmission standards.

Antennas RF Selection Notes

Select this component when designing systems requiring support for high-throughput Wi-Fi 6 and Wi-Fi 6E standards. The triple-band capability covers both 2.4 GHz and 5 GHz spectrum segments efficiently. Ensure the design accommodates the specified VSWR limits to maintain signal integrity across the entire operational bandwidth without excessive reflection losses.

Antennas RF Part Context

This antenna belongs to Unictron's portfolio of RF solutions, which includes various antennas and modules. The manufacturer specializes in providing antenna technologies for wireless communication devices. This specific model addresses the growing demand for multi-standard connectivity in modern networking equipment.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative models from other manufacturers.
