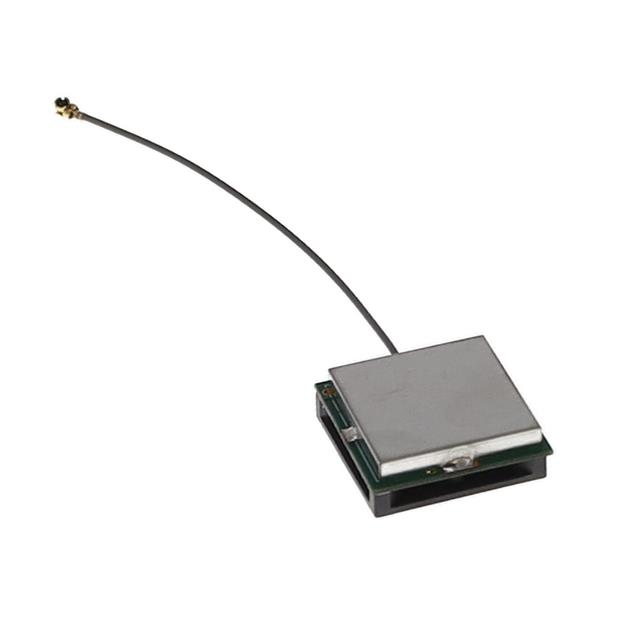

H2M1W021129900 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is ANTENNA MODULE NB26DG; GPS(L1+L5. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2M1W021129900
- Description：ANTENNA MODULE NB26DG; GPS(L1+L5
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.176GHz, 1.575GHz, 1.602GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：3
- VSWR：-
- Return Loss：-10dB
- Gain：-8dBi, 0.6dBi, 1.3dBi
- Features：Cable - 95mm, LNA
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.344" (8.75mm)
- Applications：GLONASS, GPS
- Power - Max：-
Antennas RF datasheet and documents for H2M1W021129900
Antennas RF Overview
The H2M1W021129900 is a ceramic patch RF antenna module manufactured by Unictron Technologies Corporation, designed for navigation applications including GLONASS and GPS. It operates across three frequency bands: 1.176GHz, 1.575GHz, and 1.602GHz. The component features an integrated Low Noise Amplifier (LNA) and utilizes adhesive mounting. It includes an 83.5mm cable terminated with an I-PEX connector. Maximum height is 10.75mm.
Antennas RF Feature Summary
- Integrated Low Noise Amplifier (LNA) for signal enhancement
- Ceramic patch construction for durability
- Adhesive installation method for secure attachment
Antennas RF Applications
- GLONASS positioning systems
- GPS L1/L5 navigation modules
- High-precision location tracking devices
Antennas RF Procurement Notes
Verify the specific model suffix against official Unictron documentation to confirm functional equivalence, as variations may exist between similar part numbers like H2M1W031129900. Ensure compatibility with I-PEX connectors and adhesive mounting requirements during integration planning.
Antennas RF Selection Notes
Select this component when multi-band GNSS reception is required in compact form factors. The integrated LNA supports sensitive receiver designs. Verify that the 83.5mm cable length and I-PEX interface align with system layout constraints before finalizing the design.
Antennas RF Part Context
This antenna belongs to Unictron's navigation-focused RF antenna series. It complements other models such as H2M1W031129900 within the same product family, offering specialized support for global navigation satellite systems through dedicated ceramic patch technology.
Antennas RF Replacement Considerations
H2M1W031129900 serves as a direct substitute within the same manufacturer line. Confirm identical frequency coverage and connector specifications before swapping components in existing designs.
