H2M1W031129900

Antennas RF Overview

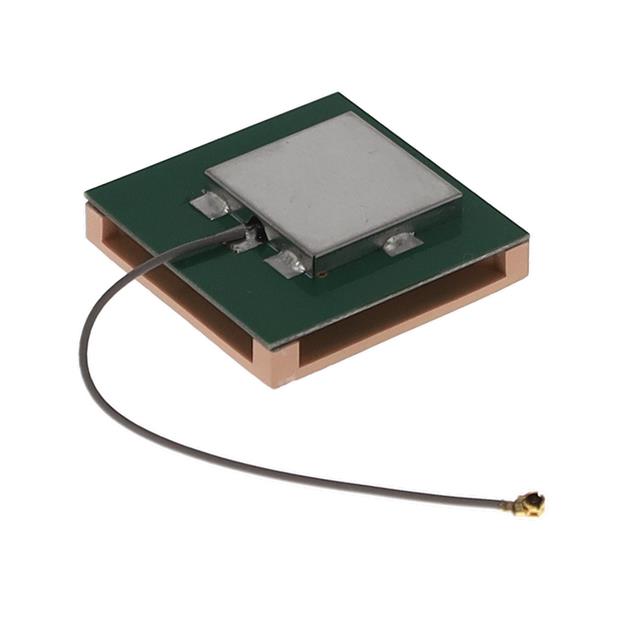

The H2M1W031129900 is a ceramic patch RF antenna module designed for navigation applications, specifically supporting GPS and GLONASS systems. It operates across three frequency bands: 1.176GHz, 1.575GHz, and 1.602GHz. The module features integrated LNA and an 83.5mm cable with I-PEX termination. Gain values are 2.7dBi, 4.8dBi, and 3.9dB respectively. It utilizes adhesive installation and has a maximum height of 10.75mm.

Antennas RF Feature Summary

• Integrated low-noise amplifier (LNA) for signal enhancement
• Multi-band support for GPS L1/L5 and GLONASS frequencies
• Adhesive mounting mechanism for secure attachment
• Pre-terminated cable with I-PEX connector interface

Antennas RF Applications

• GPS positioning devices
• GLONASS navigation systems
• GNSS receiver modules
• High-precision positioning equipment

Antennas RF Procurement Notes

Verify the specific I-PEX connector type and cable length requirements against your system design before ordering. Confirm that the adhesive mounting method aligns with your enclosure assembly process. Ensure compatibility with the supported frequency bands for your target navigation standard. Check RoHS3 compliance status if required by your manufacturing regulations.

Antennas RF Selection Notes

Select this model when multi-band GNSS reception is required in a compact form factor. The integrated LNA reduces noise figure impact on weak signals. Consider the 10.75mm height constraint for device integration. Verify that the adhesive installation method meets mechanical durability standards for the intended environment.

Antennas RF Part Context

Unictron Technologies Corporation manufactures this antenna module as part of their NB40DG series. The product falls under the category of RF antennas for wireless communications. It is classified as a ceramic patch antenna suitable for navigation standards. The component is currently listed as active in production.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Unictron official resources for potential cross-reference options.
