H2MA000D100100

Antennas RF Overview

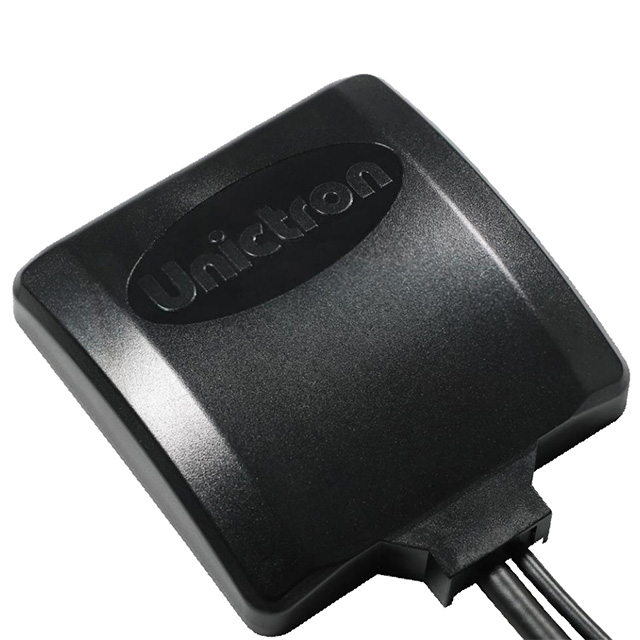

The H2MA000D100100 is an external GNSS and LTE antenna manufactured by Unictron Technologies Corporation. It supports Beidou, Galileo, GLONASS, GPS, and GNSS systems alongside LTE bands. The component features an SMA Male connector interface and utilizes adhesive for mounting. This configuration ensures reliable signal reception for multi-constellation positioning and cellular communication applications in mobile devices.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, and Beidou
• Integrates LTE band coverage for combined positioning and cellular connectivity
• Features a robust SMA Male connector for secure RF interfacing
• Utilizes adhesive mounting method for stable installation on device surfaces

Antennas RF Applications

• Multi-constellation GNSS receivers requiring high precision
• Mobile devices integrating simultaneous GPS and LTE functionality
• IoT modules needing combined location tracking and cellular data transmission
• Automotive telematics units with external antenna requirements

Antennas RF Procurement Notes

Verify the SMA Male connector orientation and adhesive backing specifications against the mechanical drawing before integration. Confirm that the selected housing material does not interfere with the antenna's radiation pattern. Ensure the mounting surface is clean and flat to guarantee optimal adhesive performance and signal integrity during operation.

Antennas RF Selection Notes

Select this model when both GNSS positioning and LTE connectivity are required within a single compact form factor. The external design allows for flexible placement away from interfering circuitry. Consider the adhesive mounting constraint if mechanical vibration or thermal cycling exceeds standard limits. Verify SMA connector compatibility with the host board or cable assembly.

Antennas RF Part Context

This part belongs to Unictron's external antenna portfolio designed for mobile and IoT applications. Unlike internal chip antennas, it offers enhanced isolation and gain through its external structure. The combination of GNSS and LTE support addresses the growing demand for integrated communication and location services in modern electronic devices.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific dual-band GNSS+LTE configuration with SMA Male interface. Evaluate other Unictron external models only if they match the exact frequency bands and connector type.
