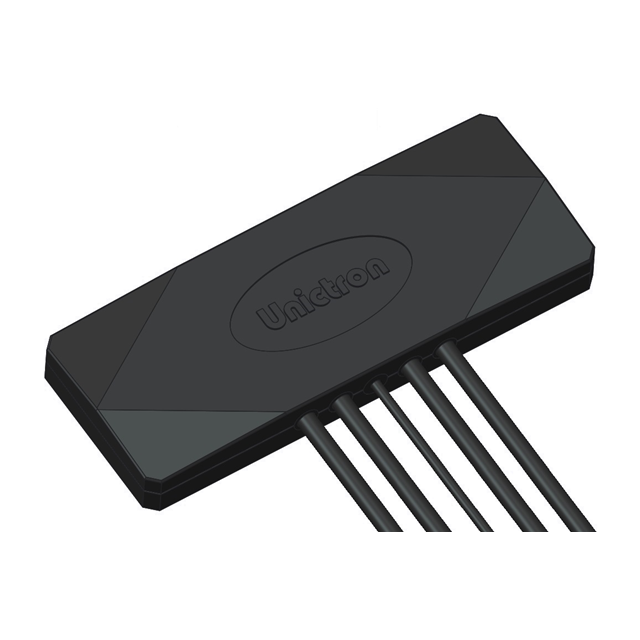

H2MA305D101100

H2MA305D101100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is 5IN1 EXTERNAL ANTENNA GNSS + LTE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for H2MA305D101100

• Description：5IN1 EXTERNAL ANTENNA GNSS + LTE
• Series：-
• Mfr：Unictron Technologies Corporation
• Package：Bulk
• RF Family/Standard：Cellular, Navigation, WiFi
• Frequency Group：Wide Band
• Frequency (Center/Band)：829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.35GHz, 2.442GHz, 2.59GHz, 3.6GHz, 5.5GHz
• Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.484GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz
• Antenna Type：Flat Patch
• Number of Bands：10
• VSWR：2, 3, 5
• Return Loss：-
• Gain：1.1dBi, 1.2dBi, 1.4dBi, 1.5dBi, 1.8dBi, 2dBi, 2.4dBi, 2.5dBi, 2.6dBi, 3.1dBi, 3.2dBi
• Features：Cable - 2m, LNA
• Termination：SMA Male
• Ingress Protection：IP67
• Grade：-
• Qualification：-
• Mounting Type：Adhesive
• Height (Max)：0.669" (17.00mm)
• Applications：Beidou, Galileo, GLONASS, GPS, GNSS, LTE, Wi-Fi
• Power - Max：-
