H2MA703F104100

$36.26

Description：ACTIVE ANTENNA HB80DF; GPS(L1+L5
Series：-
Mfr：Unictron Technologies Corporation
Package：Bag

SKU:353069fbc96a Category: RF Antennas Brand: Unictron Technologies Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

H2MA703F104100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is ACTIVE ANTENNA HB80DF; GPS(L1+L5. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for H2MA703F104100

Description：ACTIVE ANTENNA HB80DF; GPS(L1+L5
Series：-
Mfr：Unictron Technologies Corporation
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：4
VSWR：-
Return Loss：-10dB
Gain：3.1dBi, 1.5dBi, 1.4dBi, 2dBi
Features：Cable - 3m
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：1.000" (25.40mm)
Applications：BeiDou, Galileo, GLONASS, GPS, QZSS
Power - Max：-

Antennas RF datasheet and documents for H2MA703F104100

H2MA703F104100

Antennas RF Overview

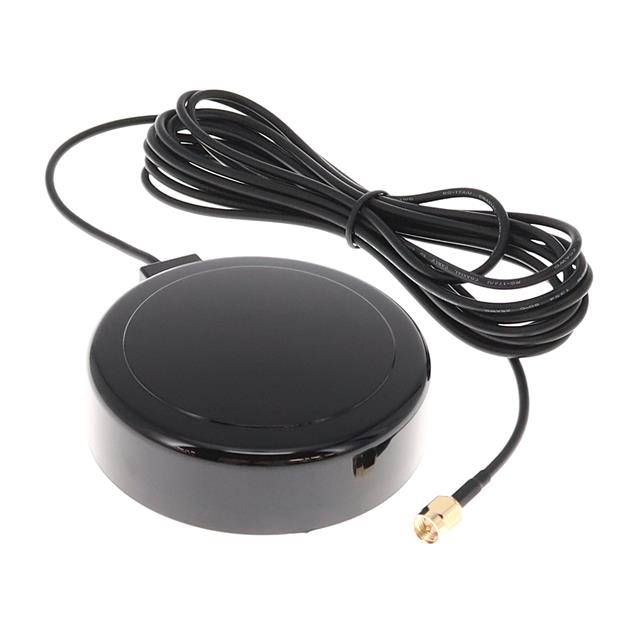

The H2MA703F104100 is an active surface-mount antenna module manufactured by Unictron Technologies Corporation. It supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, BeiDou, and QZSS. The device operates within the UHF frequency group ranging from 1 GHz to 2 GHz. It features a compact form factor with a maximum height of 1.000 inch (25.40 mm). The component is classified as an active antenna designed for integration into various positioning and timing applications.

Antennas RF Feature Summary

Supports multi-constellation GNSS reception including GPS, GLONASS, Galileo, BeiDou, and QZSS
Active antenna design integrated into a single surface-mount package
Operates within the 1 GHz to 2 GHz frequency range

Antennas RF Applications

Global Navigation Satellite System receivers
Positioning and timing modules
Mobile device location services

Antennas RF Procurement Notes

Verify the specific datasheet version and ordering suffixes to ensure compatibility with your circuit design. Confirm that the active component requirements match your power supply specifications. Check mechanical dimensions against your PCB layout constraints. Ensure the supplier provides original manufacturer documentation to validate authenticity and performance characteristics.

Antennas RF Selection Notes

Select this module when multi-constellation support is required in a compact surface-mount footprint. Consider the active nature of the antenna which may require specific bias voltage provisions. Evaluate the operating frequency range against your system's signal processing capabilities. Compare the physical height constraint with available board space.

Antennas RF Part Context

Unictron Technologies Corporation specializes in antennas, antenna modules, and piezoelectric components. This part belongs to their wireless communications product line. The company focuses on innovative technologies for positioning and sensing applications. The H2MA703 series represents their active antenna solutions for GNSS integration.
