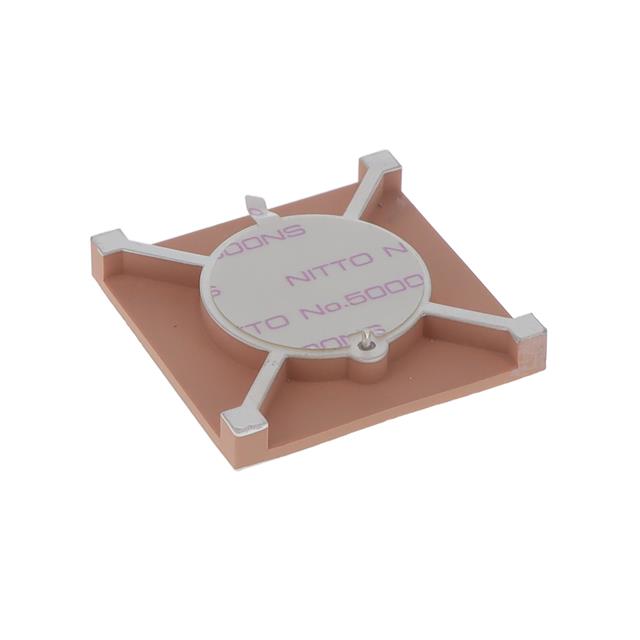

H2P139BA110100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is PB40D9NS (40X40X6MM); GPS(L1+L5). Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2P139BA110100
- Description：PB40D9NS (40X40X6MM); GPS(L1+L5)
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.176GHz, 1.575GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：2
- VSWR：-
- Return Loss：-10dB
- Gain：5.4dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：0.236" (6.00mm)
- Applications：BDS, Galileo, GPS, IRNSS, QZSS
- Power - Max：-
Antennas RF datasheet and documents for H2P139BA110100
Antennas RF Overview
The H2P139BA110100 is a ceramic patch antenna manufactured by Unictron Technologies Corporation, designed for Global Navigation Satellite System (GNSS) applications. It supports multiple constellations including GPS L1 and L5 bands, BDS, Galileo, GLONASS, IRNSS, and QZSS. The component features a compact form factor with dimensions of 40x40x6mm, suitable for integration into various navigation devices requiring multi-band GNSS reception capabilities.
Antennas RF Feature Summary
- Supports dual-frequency GPS L1 and L5 band reception
- Compatible with multiple global satellite navigation systems including BDS, Galileo, and GLONASS
- Utilizes ceramic patch construction for durability
Antennas RF Applications
- Marine Navigation
- Avionics
- GPS tracking devices
Antennas RF Procurement Notes
Verify the specific frequency band support and mechanical mounting requirements against your design specifications before ordering. Confirm that the 40x40x6mm package size fits within your device enclosure constraints. Ensure compatibility with the intended GNSS receiver module interface. Check for any regional regulatory approvals required for the target market deployment.
Antennas RF Selection Notes
Select this model when multi-constellation support and dual-frequency L1/L5 performance are required. Consider the physical dimensions and ceramic material properties for environmental resilience. Evaluate if the patch antenna form factor aligns with the available space in the final product assembly compared to chip or whip alternatives.
Antennas RF Part Context
This part belongs to Unictron's portfolio of GNSS antennas. It is distinct from their chip antennas like the H2U series due to its larger patch structure and multi-band capability. The H2P139BA110100 serves as a specialized solution for high-precision navigation needs across various industries.
Antennas RF Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Users should evaluate other Unictron GNSS patch antennas based on dimensional and electrical compatibility.
