H2U262GKBA0100

Antennas RF Overview

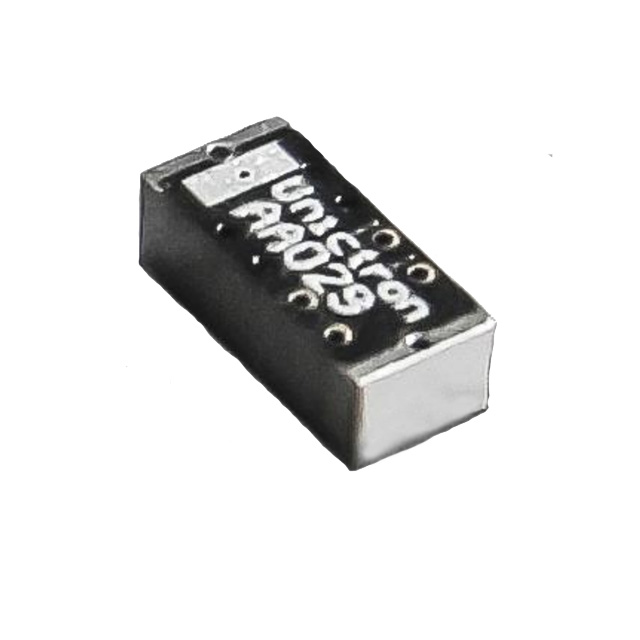

The H2U262GKBA0100 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation. It operates within the 2.4GHz to 2.5GHz frequency range, specifically centered at 2.45GHz. The component supports wireless standards including 802.11b/g/n, Bluetooth, ISM, Wi-Fi, and Zigbee. It features a surface-mount package with solder termination and a maximum height of 0.30mm (0.012 inches). The antenna provides a gain of -0.3dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 2.5. It is rated for a maximum power handling capacity of 2 Watts.

Antennas RF Feature Summary

• Supports multiple wireless protocols including Wi-Fi, Bluetooth, and Zigbee
• Compact surface-mount design suitable for space-constrained applications
• Ceramic construction for stable RF performance

Antennas RF Applications

• Wi-Fi devices
• Bluetooth peripherals
• Zigbee networks
• ISM band equipment

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure correct packaging configuration, such as tape and reel or cut tape options. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into the manufacturing process. Ensure compatibility with standard surface-mount assembly procedures.

Antennas RF Selection Notes

Select this component for applications requiring a low-profile antenna supporting dual-band 2.4GHz operations. Consider the -0.3dBi gain specification when designing system link budgets. Verify that the 2W power rating aligns with the transmitter output capabilities of the target electronic device.

Antennas RF Part Context

This part belongs to the H2U262 series of ceramic chip antennas from Unictron Technologies Corporation. These components are designed for high-volume consumer electronics and IoT devices requiring reliable short-range wireless connectivity in the 2.4GHz spectrum.

Antennas RF Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation.
