H2U34C1H1B0100

Antennas RF Overview

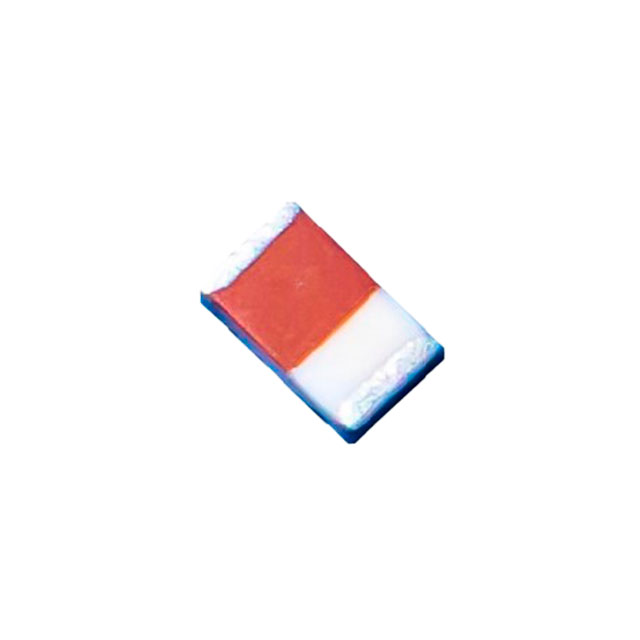

The H2U34C1H1B0100 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation, designed for the 2.4 GHz ISM band. It operates within a frequency range of 2.4 GHz to 2.484 GHz with a center frequency of 2.442 GHz. The component provides a gain of 1.9 dBi and maintains a VSWR of 2.5. It supports maximum power handling of 2 W and features surface mount soldering termination. The antenna has a maximum height of 0.012 inches (0.30 mm) and complies with RoHS3 standards.

Antennas RF Feature Summary

• Utilizes proprietary ceramic design for Bluetooth, Wi-Fi, and Zigbee applications
• Supports surface mount soldering for compact PCB integration
• Complies with RoHS3 environmental specifications

Antennas RF Applications

• Bluetooth devices
• Wi-Fi modules
• Zigbee networks
• ISM band wireless communication systems

Antennas RF Procurement Notes

Verify the manufacturer standard lead time of 12 weeks before ordering. Confirm that the part status remains active as listed in official distributor catalogs. Ensure compatibility with surface mount assembly processes. Check for specific packaging requirements such as tape and reel quantities if applicable. Validate that the RoHS3 compliance meets your project's regulatory standards.

Antennas RF Selection Notes

Select this component when a low-profile ceramic antenna is required for 2.4 GHz wireless protocols. The 1.9 dBi gain offers balanced performance for short-range communications. Consider the 0.30 mm height constraint for space-limited designs. Ensure the host circuit can support the specified VSWR and power limits for reliable operation.

Antennas RF Part Context

This model belongs to the H2U34 series of wireless communication antennas from Unictron Technologies. The series is engineered specifically for multi-protocol environments supporting Bluetooth, Wi-Fi, and Zigbee standards. It serves as a compact alternative to larger external antennas in portable and embedded electronic devices.

Antennas RF Replacement Considerations

The H2UB4K1H1B0100 is documented as an alias or related part number within the same product family. Verify electrical parameters and physical dimensions before substitution to ensure functional equivalence in the target application.
