H2U36D1K1B0300

Antennas RF Overview

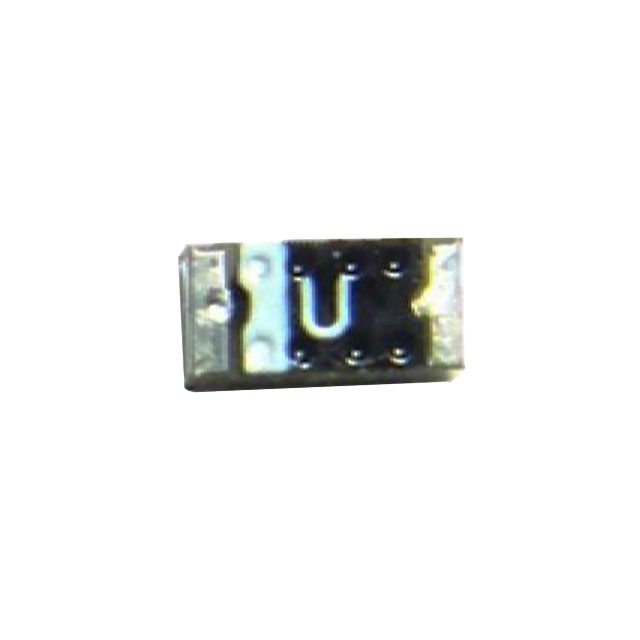

The H2U36D1K1B0300 is a surface-mount chip RF antenna manufactured by Unictron Technologies Corporation. It operates within the 2.4GHz to 2.5GHz frequency range, centered at 2.45GHz. The component supports multiple wireless standards including Wi-Fi (802.11b/g/n), Bluetooth, Zigbee, and ISM applications. Key electrical specifications include a maximum gain of 1.9dBi, a Voltage Standing Wave Ratio (VSWR) of 2, and a maximum power handling capacity of 2 W. The antenna utilizes solder termination for PCB integration and has a maximum height of 0.063 inches (1.60mm).

Antennas RF Feature Summary

• Supports dual-band operation covering 2.4GHz to 2.5GHz frequencies.
• Compatible with Wi-Fi, Bluetooth, Zigbee, and general ISM protocols.
• Designed for surface-mount installation with solder termination.

Antennas RF Applications

• Wi-Fi devices compliant with 802.11b/g/n standards
• Bluetooth-enabled consumer electronics
• Zigbee wireless sensor networks
• General ISM band communication modules

Antennas RF Procurement Notes

Verify the specific package variant (TR, CT, or DKR) required for your assembly process before ordering. Confirm that the 2.4GHz to 2.5GHz frequency range aligns with your target regulatory domain and protocol requirements. Ensure the 2W maximum power rating exceeds your transmitter's output to prevent damage. Check the MSL level 1 classification for appropriate storage and reflow soldering conditions during manufacturing.

Antennas RF Selection Notes

Select this component when a compact surface-mount solution is needed for 2.4GHz wireless applications. The 1.9dBi gain offers efficient signal transmission for short-range connectivity. Consider the 1.60mm height constraint for low-profile device designs. Verify compatibility with standard SMT reflow profiles due to its chip antenna construction and solder termination type.

Antennas RF Part Context

This part belongs to Unictron's H2U36D1 series of chip antennas. These components are designed for high-volume production in portable wireless devices. The series focuses on providing reliable performance in the 2.4GHz ISM band while maintaining a small footprint suitable for modern miniaturized electronics.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Evaluate other Unictron chip antennas within the same frequency range if availability is an issue, ensuring identical VSWR and gain specifications.
