H2U36G4K1B0100

$0.52

Description：WIFI/BT 2400-2500 MHZ MONOPOLE C
Series：-
Mfr：Unictron Technologies Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f016893e980c Category: RF Antennas Brand: Unictron Technologies Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

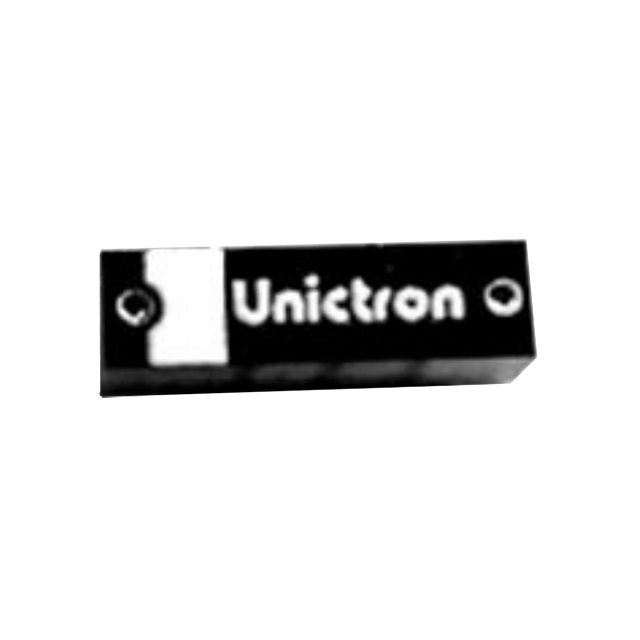

H2U36G4K1B0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is WIFI/BT 2400-2500 MHZ MONOPOLE C. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for H2U36G4K1B0100

Description：WIFI/BT 2400-2500 MHZ MONOPOLE C
Series：-
Mfr：Unictron Technologies Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2.3dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.079" (2.00mm)
Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™
Power - Max：2 W

Antennas RF datasheet and documents for H2U36G4K1B0100

H2U36G4K1B0100

Antennas RF Overview

The H2U36G4K1B0100 is a surface-mount RF chip antenna manufactured by Unictron Technologies Corporation. It operates within the 2.4GHz to 2.5GHz frequency range, centered at 2.45GHz. The component provides a gain of 2dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 2. Designed for compact integration, it features a solder termination type and supports applications including 802.11b/g/n, Bluetooth, ISM, Wi-Fi, and Zigbee protocols.
