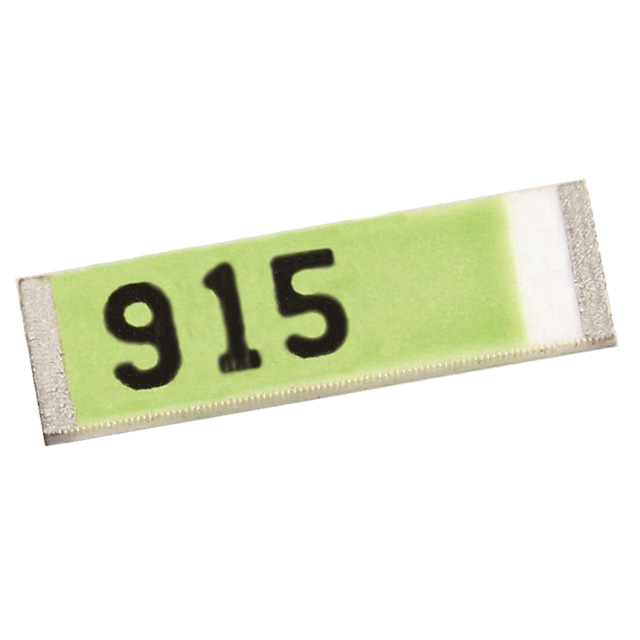

H2U646MHLQ0200 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is 915MHZ ISM 902-928MHZ TELA CERAM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2U646MHLQ0200
- Description：915MHZ ISM 902-928MHZ TELA CERAM
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：915MHz
- Frequency Range：902MHz ~ 928MHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：0.9dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.020" (0.50mm)
- Applications：ISM
- Power - Max：2 W
Antennas RF datasheet and documents for H2U646MHLQ0200
Antennas RF Overview
The H2U646MHLQ0200 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation, designed for the UHF frequency group. It operates within the 902MHz to 928MHz range with a center frequency of 915MHz, targeting General ISM applications. The component features a gain of 0.9dBi and supports a maximum power of 2 W. It utilizes surface mount soldering and has a maximum height of 0.020 inches (0.50mm). The Voltage Standing Wave Ratio (VSWR) is specified at 2.
Antennas RF Feature Summary
- Utilizes TELA CERAM technology for robust construction
- Designed as an omni-directional chip antenna for SMD mounting
- Complies with RoHS3 specifications
Antennas RF Applications
- ISM band wireless communication systems
- RFID transponders and readers
- Industrial telemetry devices
Antennas RF Procurement Notes
Verify that the specific order matches the H2U646MHLQ0200 designation to ensure correct 915MHz operation. Confirm surface mount compatibility with the 10.0 x 3.2 mm footprint. Check datasheet for MSL 2A handling requirements and standard lead times prior to procurement planning.
Antennas RF Selection Notes
Select this component for designs requiring a low-profile 0.50mm height antenna in the 902-928MHz band. Ensure the application environment remains within the operational temperature range. Verify impedance matching for 50Ω systems to maintain the specified VSWR performance.
Antennas RF Part Context
This part belongs to the H2U646 series from Unictron Technologies Corporation. It is distinct from other variants like H2U64U1H2C0200 which targets different frequencies such as 863-870MHz. The AA066 engineering specification document provides detailed technical parameters for this specific model.
Antennas RF Replacement Considerations
Direct substitutes are not explicitly listed in public documentation. Consider checking the H2U646 family for variants with identical electrical characteristics if availability is an issue.
