H2U64H1H2B0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is 868MHZ ISM 863-870MHZ TELA CERAM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2U64H1H2B0100
- Description：868MHZ ISM 863-870MHZ TELA CERAM
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：866.5MHz
- Frequency Range：863MHz ~ 870MHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：0.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.020" (0.50mm)
- Applications：ISM
- Power - Max：2 W
Antennas RF datasheet and documents for H2U64H1H2B0100
Antennas RF Overview

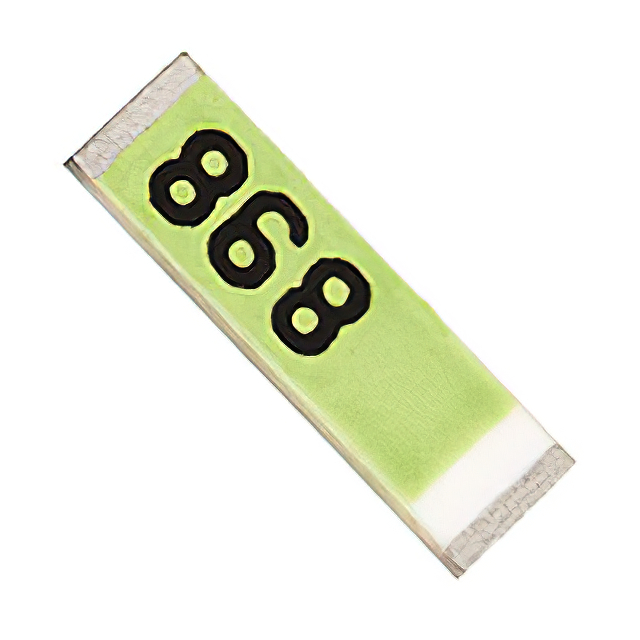

The H2U64H1H2B0100 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation, designed for UHF ISM applications. It operates within the 863MHz to 870MHz frequency range with a center frequency of 866.5MHz. The component features a gain of 0.5dBi and a maximum power handling capacity of 2W. Key electrical specifications include a Voltage Standing Wave Ratio (VSWR) of 2. It utilizes solder termination and surface mount installation, with a maximum height of 0.020 inches (0.50mm).
Antennas RF Feature Summary
- Utilizes TELA CERAM technology for compact ceramic construction.
- Optimized for general ISM band operations in the UHF spectrum.
- Supports surface mount assembly via solder termination.
Antennas RF Applications
- ISM wireless communication devices
- RFID systems
- Industrial monitoring equipment
Antennas RF Procurement Notes
Verify the specific manufacturer part number against official Unictron documentation to ensure accuracy. Confirm that the required frequency range aligns with regional ISM regulations for the target deployment area. Check datasheet details regarding moisture sensitivity levels and reflow soldering profiles to guarantee proper handling during the manufacturing process.
Antennas RF Selection Notes
Select this component when a low-profile surface mount antenna is required for UHF ISM bands. Consider the 0.5dBi gain and 2W power rating relative to system link budget requirements. Ensure the physical footprint and height constraints of the design accommodate the specified dimensions for reliable integration.
Antennas RF Part Context
This component belongs to the H2U64 series of RF antennas produced by Unictron Technologies Corporation. The series focuses on ceramic chip antennas tailored for industrial, scientific, and medical frequency bands. These components are engineered for high reliability in compact electronic designs requiring efficient signal transmission in the UHF range.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit layouts before considering alternative sources or generic equivalents.
