H2U64U1H2C0200

Antennas RF Overview

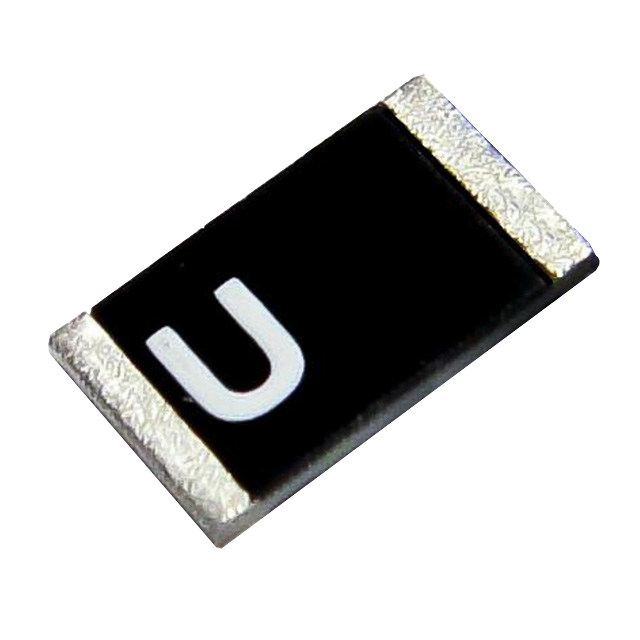

The H2U64U1H2C0200 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation. It operates within the 863MHz to 870MHz frequency range, centered at 866.5MHz, targeting ISM and Wi-Fi applications in the UHF band. The component features a gain of 0dBi and supports a maximum power handling of 2 W. It exhibits a Voltage Standing Wave Ratio (VSWR) of 2 and utilizes solder termination for surface mount installation. The antenna has a maximum height of 0.020 inches (0.50mm).

Antennas RF Feature Summary

• Utilizes ceramic material construction for compact surface-mount integration.
• Designed specifically for ISM and Wi-Fi frequency bands.
• Supports standard solder termination methods.

Antennas RF Applications

• ISM band devices
• Wi-Fi enabled equipment

Antennas RF Procurement Notes

Verify the specific manufacturer part number against official Unictron documentation to ensure compatibility with target frequency requirements. Confirm that the surface-mount package dimensions and soldering profiles align with the assembly specifications. Check RoHS compliance status and moisture sensitivity level ratings prior to procurement to ensure adherence to storage and handling standards.

Antennas RF Selection Notes

Select this component when designing systems requiring a low-profile antenna for the 863-870MHz range. Consider the 0dBi gain and 2W power rating relative to system link budget requirements. Ensure the PCB layout accommodates the specified surface-mount footprint and height constraints for proper impedance matching and mechanical stability.

Antennas RF Part Context

This model belongs to the H2U64 series of ceramic chip antennas from Unictron Technologies Corporation. The series provides solutions for various UHF frequency applications, utilizing ceramic substrates to achieve reliable performance in compact form factors suitable for modern electronic device miniaturization.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence with other Unictron models in the H2U64 series if direct substitution is required.
