H2U64U1H2J0100

Antennas RF Overview

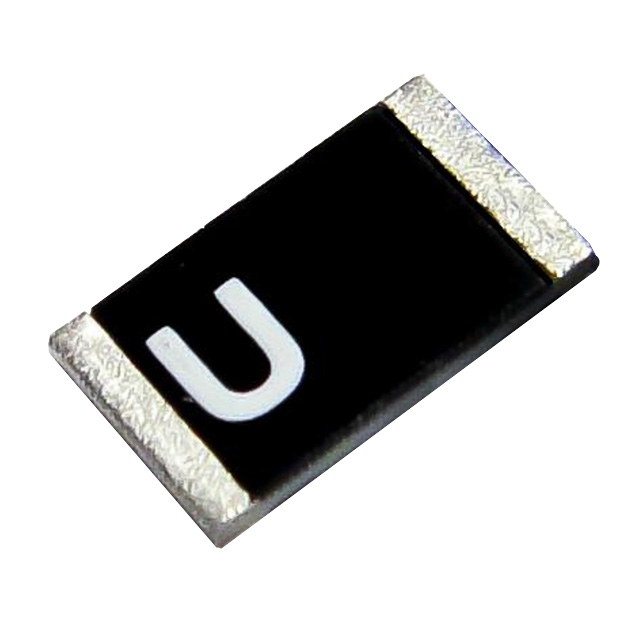

The H2U64U1H2J0100 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation, designed for the ISM band. It operates at a center frequency of 434.79 MHz with a range of 433 MHz to 434.79 MHz. The component provides a gain of 0.2 dBi and maintains a VSWR of 2. It supports a maximum power of 2 W and utilizes solder termination for surface mount installation. The antenna has a maximum height of 0.020 inches (0.50 mm) and is classified under the UHF frequency group.

Antennas RF Feature Summary

• Utilizes ceramic material construction for stable RF performance in compact designs
• Optimized for single-band operation within the 433-434.79 MHz ISM spectrum
• Supports surface mount technology with solder termination for automated assembly

Antennas RF Applications

• ISM band wireless communication systems
• Remote control devices
• Low-power IoT sensors

Antennas RF Procurement Notes

Verify the specific datasheet revision when sourcing this component to ensure compatibility with current manufacturing standards. Confirm that the 434.79 MHz center frequency aligns with regional regulatory requirements for your target market. Check for any updates regarding moisture sensitivity levels or RoHS compliance status prior to finalizing procurement orders.

Antennas RF Selection Notes

Select this model for applications requiring a low-profile ceramic antenna in the 433 MHz ISM band. Consider its 0.2 dBi gain and 2 W power handling capabilities against system link budget requirements. Ensure the PCB layout accommodates the surface mount footprint and ground plane specifications defined in the official documentation for optimal impedance matching.

Antennas RF Part Context

This component belongs to the H2U64 series of RF antennas from Unictron Technologies Corporation. It is categorized as a ceramic chip antenna within the UHF frequency group. The part is distinct from other models in the series that operate at different frequencies such as 868 MHz or 915 MHz, offering specific tuning for the 433 MHz region.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative Unictron models within the H2U64 series only if they match the required 433 MHz ISM frequency band and physical dimensions.
