H2U84W1H1S0300

Antennas RF Overview

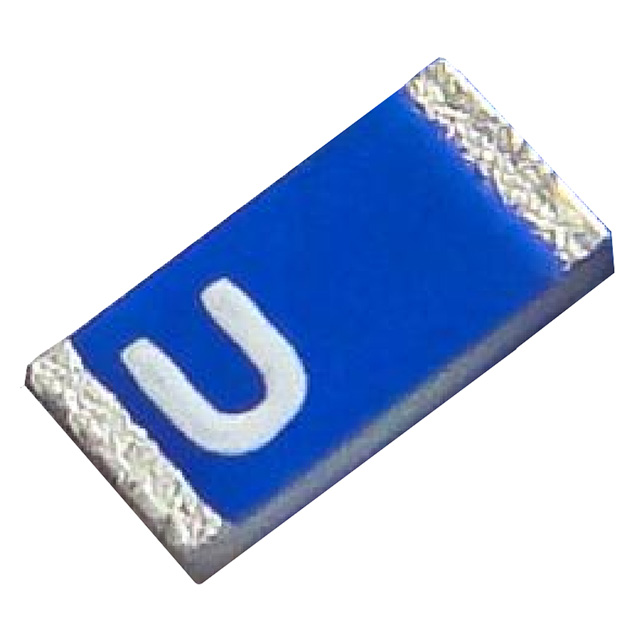

The H2U84W1H1S0300 is a dual-band ceramic chip antenna manufactured by Unictron Technologies Corporation. Designed for WiFi applications, it operates across the 2.45GHz and 5.5GHz frequency ranges. The component supports multi-standard wireless protocols within these bands. It features a surface-mount package suitable for automated assembly processes. The antenna provides efficient signal transmission for dual-band connectivity requirements.

Antennas RF Feature Summary

• Dual-band operation covering 2.45GHz and 5.5GHz frequencies
• Ceramic chip construction for compact integration
• Surface-mount design for PCB assembly

Antennas RF Applications

• WiFi routers and access points
• Wireless network adapters
• IoT devices requiring dual-band connectivity

Antennas RF Procurement Notes

Verify the specific frequency range and impedance matching requirements against the official datasheet before procurement. Ensure the selected packaging option aligns with the production line's surface-mount technology capabilities. Confirm compliance with relevant environmental regulations such as RoHS standards prior to finalizing the supply chain agreement.

Antennas RF Selection Notes

Select this component when dual-band WiFi performance at 2.45GHz and 5.5GHz is required in a small form factor. Consider the ceramic material properties for stability and the surface-mount profile for board space constraints. Evaluate the antenna's radiation pattern and gain specifications relative to the device enclosure design to ensure optimal signal integrity.

Antennas RF Part Context

This model belongs to Unictron's ceramic chip antenna series, specifically engineered for wireless communication modules. It complements other RF components by providing reliable dual-band coverage. The product line focuses on miniaturization and high-performance characteristics for modern electronic devices requiring robust wireless connectivity solutions.
