H2U94W1H1G0300

Antennas RF Overview

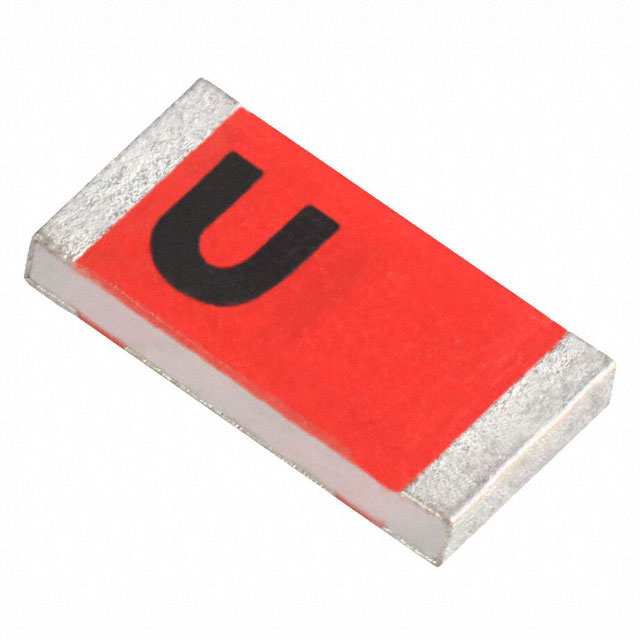

The H2U94W1H1G0300 is a GNSS ceramic chip antenna manufactured by Unictron Technologies Corporation. It operates within the UHF frequency group, specifically covering 2.4GHz to 3GHz for Bluetooth and WiFi applications, alongside a center frequency of 1.575GHz for GPS. The component utilizes surface mount soldering for integration into electronic circuits. This antenna supports multiple wireless standards including Zigbee, providing versatile connectivity options for compact device designs requiring robust RF performance across distinct frequency bands.

Antennas RF Feature Summary

• Supports multi-standard wireless communication protocols including Bluetooth, WiFi, and Zigbee
• Designed for Global Navigation Satellite System (GNSS) positioning applications
• Utilizes ceramic material construction for stable RF characteristics

Antennas RF Applications

• Bluetooth-enabled consumer electronics
• WiFi integrated smart devices
• Zigbee home automation modules
• GPS navigation receivers

Antennas RF Procurement Notes

Verify the specific datasheet version when ordering, as the component supports dual frequency ranges for different wireless standards. Confirm that the target application requires both GNSS and 2.4GHz ISM band capabilities. Ensure the PCB layout accommodates surface mount soldering requirements. Cross-reference the manufacturer's part number to avoid confusion with similar Unictron models.

Antennas RF Selection Notes

Select this component when a single antenna solution is required for combined GNSS and 2.4GHz wireless connectivity. It is suitable for space-constrained designs due to its chip form factor. Consider the ceramic construction if environmental stability is a priority. Verify compatibility with the specific Bluetooth, WiFi, or Zigbee protocol stack in use.

Antennas RF Part Context

This model belongs to Unictron Technologies Corporation's portfolio of advanced antenna solutions. The company specializes in piezoelectric ceramic elements and antenna modules. The H2U94 series represents their chip antenna offerings designed for high-volume consumer electronics manufacturing. These components are engineered to meet modern wireless communication demands.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for equivalent alternatives or updated product line replacements.
