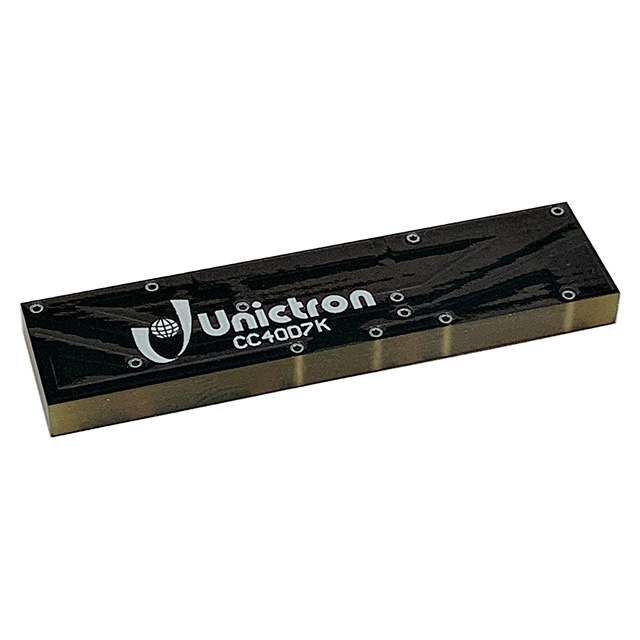

H2UE6P1K2R0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is GSM 3G CHIP 824-960 1710-2170 MH. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2UE6P1K2R0100
- Description：GSM 3G CHIP 824-960 1710-2170 MH
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Cellular
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：892MHz, 1.94GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Antenna Type：Chip
- Number of Bands：2
- VSWR：3
- Return Loss：-
- Gain：1.7dBi, 2.9dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.126" (3.20mm)
- Applications：3G, GSM
- Power - Max：2 W
Antennas RF datasheet and documents for H2UE6P1K2R0100
Antennas RF Overview
The H2UE6P1K2R0100 is a surface-mount chip antenna manufactured by Unictron Technologies Corporation, designed for cellular communication applications. It supports dual-band operation within the UHF frequency groups of 300MHz to 1GHz and 1GHz to 2GHz. The component features center frequencies at 892MHz and 1.94GHz, targeting GSM and 3G network standards. It utilizes a solder termination method for PCB integration.
Antennas RF Feature Summary
- Supports dual-band cellular connectivity for GSM and 3G networks
- Designed as a compact surface-mount chip antenna
- Operates across specified UHF frequency ranges
Antennas RF Applications
- GSM mobile devices
- 3G cellular modules
- IoT devices requiring cellular connectivity
Antennas RF Procurement Notes
Verify the specific datasheet version with Unictron Technologies Corporation before procurement. Confirm that the 892MHz and 1.94GHz frequency targets align with regional cellular band requirements. Ensure surface-mount soldering processes are compatible with the component's termination style. Check for any updated environmental compliance certifications such as RoHS status prior to ordering.
Antennas RF Selection Notes
Select this component when dual-band GSM and 3G support is required in a small form factor. The 892MHz and 1.94GHz frequencies must match the target network infrastructure. Consider the surface-mount package for automated assembly. Verify impedance matching requirements for the specific RF circuit design to ensure optimal signal transmission.
Antennas RF Part Context
This part belongs to Unictron's portfolio of RF antennas and piezoelectric ceramic elements. Unictron Technologies Corporation specializes in designing components for wireless communication systems. The H2UE6P1K2R0100 fits within their cellular antenna series, providing essential radio frequency interface solutions for mobile and industrial electronics.
Antennas RF Replacement Considerations
No public substitute part numbers are documented for this model. Consult Unicron Technologies Corporation directly for potential alternatives or newer revisions.
