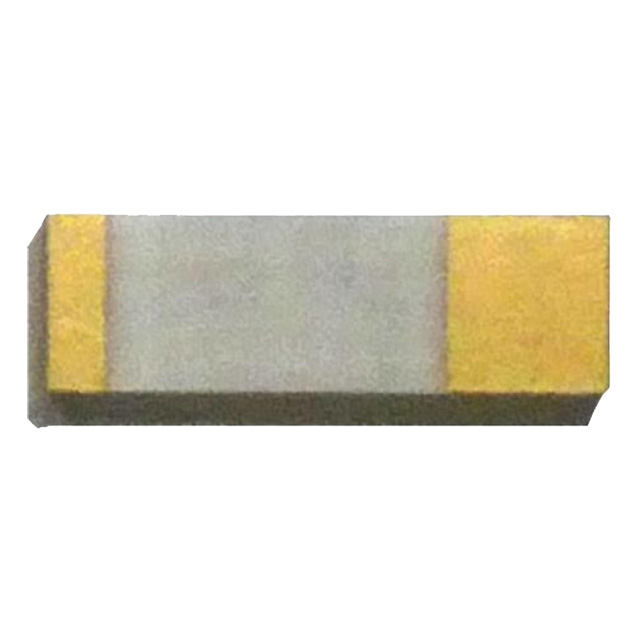

H2UJ6V1A2A0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is GNSS 1560-1606 MHZ WIDE BAND TEL. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2UJ6V1A2A0100
- Description：GNSS 1560-1606 MHZ WIDE BAND TEL
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.583GHz
- Frequency Range：1.56GHz ~ 1.606GHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2.7dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.079" (2.00mm)
- Applications：Galileo, GLONASS, GNSS, GPS
- Power - Max：2 W
Antennas RF datasheet and documents for H2UJ6V1A2A0100
Antennas RF Overview
The H2UJ6V1A2A0100 is a chip RF antenna manufactured by Unictron Technologies Corporation, designed for global navigation satellite systems. It operates within the frequency range of 1.56GHz to 1.606GHz, with a center frequency of 1.583GHz. The component provides a gain of 2.7dBi and supports a maximum power input of 2 W. It features a surface mount installation type with solder termination. The physical dimensions include a maximum height of 0.079 inches (2.00mm). This antenna is suitable for applications involving Galileo, GLONASS, GNSS, and GPS signals.
Antennas RF Feature Summary
- Supports multi-constellation navigation including Galileo, GLONASS, GNSS, and GPS
- Surface mount design with solder termination for PCB integration
- Optimized for high-precision positioning applications
Antennas RF Applications
- Global Navigation Satellite System (GNSS) receivers
- High-precision positioning modules
- Navigation devices requiring Galileo and GLONASS support
Antennas RF Procurement Notes
Verify the specific datasheet version from Unictron Technologies Corporation before procurement. Confirm that the surface mount package dimensions and soldering parameters align with your PCB assembly capabilities. Ensure the operating environment does not exceed the specified maximum power rating of 2 W. Check for any RoHS compliance documentation if required by your supply chain standards. Validate the frequency range against your system requirements.
Antennas RF Selection Notes
Select this component when a low-profile surface mount antenna is required for multi-constellation GNSS applications. The 2.00mm height makes it suitable for space-constrained designs. Consider the 2.7dBi gain for typical receiver sensitivity needs. Evaluate the solder termination method against your manufacturing process. Compare performance metrics with other Unictron models in the H2UJ series if alternative form factors are needed.
Antennas RF Part Context
This part belongs to the Unictron Technologies Corporation portfolio of RF antennas. It is categorized under chip antennas for navigation systems. The manufacturer specializes in antennas, antenna modules, and piezoelectric ceramic elements. This specific model is designed for modern GNSS standards, supporting both legacy and newer satellite constellations.
Antennas RF Replacement Considerations
Check the H2U14W1H1A0400 for similar frequency coverage but different gain characteristics. Verify compatibility with existing PCB layouts if substituting. Consult official Unictron documentation for direct cross-reference information.
