H2UM6D1K2T0100

$1.39

Description：UNICTRON CE807 - WI-FI 6E BAND ,
Series：-
Mfr：Unictron Technologies Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:dd598adbed3e Category: RF Antennas Brand: Unictron Technologies Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

H2UM6D1K2T0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is UNICTRON CE807 - WI-FI 6E BAND ,. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for H2UM6D1K2T0100

Description：UNICTRON CE807 - WI-FI 6E BAND ,
Series：-
Mfr：Unictron Technologies Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：WiFi
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：6.525GHz
Frequency Range：5.925GHz ~ 7.125GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2
Return Loss：-
Gain：3.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.315" (8.00mm)
Applications：Wi-Fi
Power - Max：2 W

Antennas RF datasheet and documents for H2UM6D1K2T0100

H2UM6D1K2T0100

Antennas RF Overview

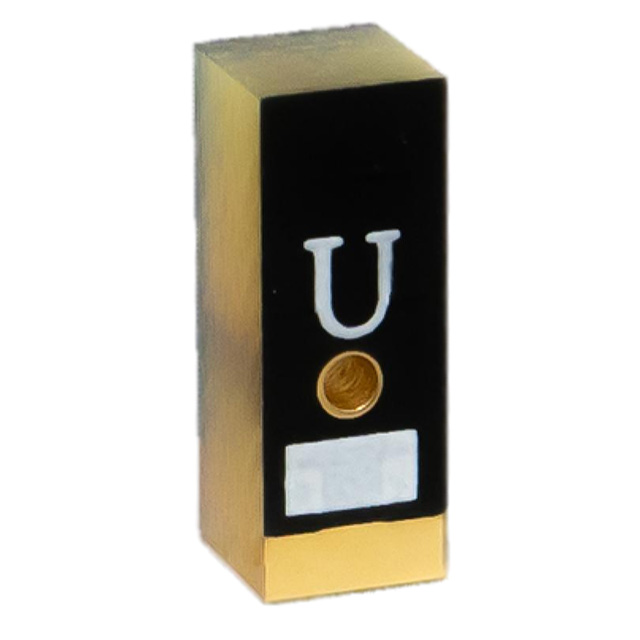

The H2UM6D1K2T0100 is a Wi-Fi chip antenna manufactured by Unictron Technologies Corporation. It supports the Wi-Fi 6E band and is designed for surface mount installation via soldering. The component features a ceramic construction with dimensions of 8.0mm x 4.0mm x 1.5mm. It operates within the 5925MHz to 7125MHz frequency range, providing an impedance of 50 ohms and a voltage standing wave ratio (VSWR) of less than 2. This antenna is engineered for high-performance wireless connectivity in modern electronic devices.

Antennas RF Feature Summary

Supports Wi-Fi 6E band operation
Compact ceramic chip design
Surface mount solder termination

Antennas RF Applications

Wireless routers
Mobile devices
IoT modules

Antennas RF Procurement Notes

Verify the specific frequency coverage and physical dimensions against the official datasheet before integration. Confirm that the soldering process parameters align with the manufacturer's recommendations to ensure reliable electrical performance and mechanical stability in the final assembly.

Antennas RF Selection Notes

Select this component when designing systems requiring support for the 6GHz spectrum. Ensure the host PCB layout accommodates the required ground plane and clearance specifications. Verify compatibility with the target device's RF front-end architecture to maintain optimal signal integrity.

Antennas RF Part Context

This part belongs to Unictron's portfolio of advanced antenna solutions. The company specializes in innovative technologies for diverse applications including consumer electronics and industrial equipment. The H2UM6D1K2T0100 represents their capability to produce compact components for next-generation wireless standards.
