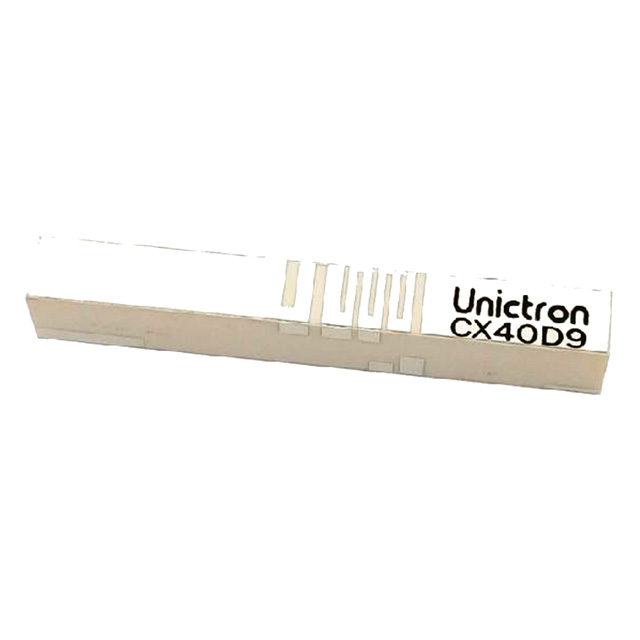

H2UN3P1D2V0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is UNICTRON CX40D9 - 5G FR1 CHIP AN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2UN3P1D2V0100
- Description：UNICTRON CX40D9 - 5G FR1 CHIP AN
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：788.5MHz, 1.94GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz
- Frequency Range：617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
- Antenna Type：Chip
- Number of Bands：6
- VSWR：-
- Return Loss：-
- Gain：1.5dBi, 3.5dBi, 2.5dBi, 2.7dBi, 2.6dBi, 3dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.236" (6.00mm)
- Applications：4G, 5G
- Power - Max：2 W
Antennas RF datasheet and documents for H2UN3P1D2V0100
Antennas RF Overview
The H2UN3P1D2V0100 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation, designed for cellular applications. It supports the CX40D9 standard and operates within a wide frequency band centered at 788.5MHz, 1.94GHz, and 2.495GHz. This component is suitable for 5G NR FR1 implementations.
Antennas RF Feature Summary
- Supports 5G New Radio Frequency Range 1 (FR1) standards
- Utilizes ceramic chip technology for compact integration
- Designed for multi-band cellular connectivity
Antennas RF Applications
- 5G NR FR1 mobile devices
- Cellular IoT modules
- Wideband communication hardware
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and soldering reflow profiles. Ensure compatibility with the target PCB layout for the CX40D9 form factor. Check RoHS compliance status if required by regional regulations. Confirm availability through authorized distributors as lead times may vary.
Antennas RF Selection Notes
Select this model when a low-profile ceramic solution is required for 5G FR1 bands. Consider the operating frequencies of 788.5MHz, 1.94GHz, and 2.495GHz against system requirements. Evaluate space constraints due to its chip antenna design compared to module alternatives.
Antennas RF Part Context
This part belongs to Unictron's advanced antenna portfolio, focusing on piezoelectric ceramic elements. It addresses the growing demand for compact, high-performance antennas in next-generation wireless infrastructure and consumer electronics supporting modern cellular standards.
