H4001CG

Overview

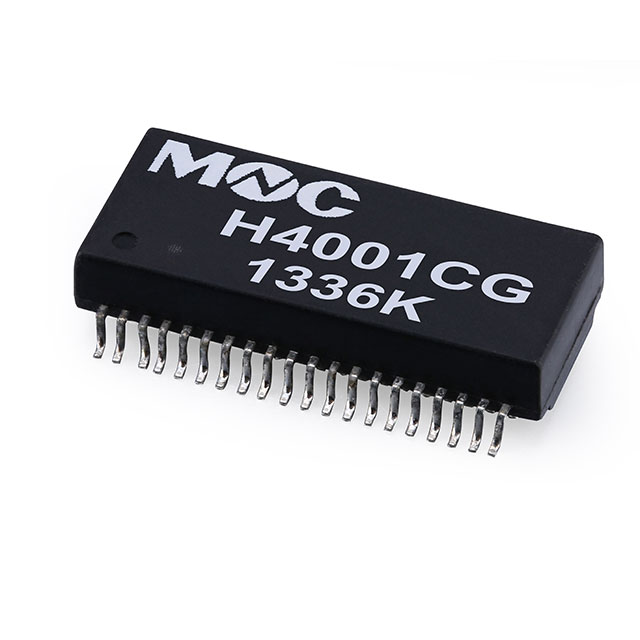

The H4001CG is a LAN 10/100 Base-T pulse transformer manufactured by Mentech Technology USA Inc. It features an inductance of 350µH and supports four channels for quad-port applications. The component operates within a temperature range of 0°C to +70°C and provides an isolation voltage of 1.5kVrms. Designed for surface mount technology, it utilizes a SOP-40-12.2mm package with 40 pins. This device meets IEEE 802.3u standards and is RoHS compliant.

Feature Summary

• Designed for 10/100 Base-T LAN applications
• Quad-port configuration with 40-pin surface mount package
• Compliant with IEEE 802.3u standards

Applications

• Ethernet network interface cards
• LAN port implementations
• Network switches and hubs

Procurement Notes

Verify the specific datasheet version A0231074-2909-4BD1-B46A-BB80982B87C4 against your design requirements. Confirm that the SOP-40-12.2mm footprint matches your PCB layout. Ensure the operating temperature range of 0°C to +70°C suits your environmental conditions. Check for RoHS compliance documentation if required by your supply chain regulations.

Selection Notes

Select this component when a quad-port 10/100 Base-T solution is required. The 350µH inductance value must align with your circuit design specifications. Consider the 1.5kVrms isolation voltage for safety requirements. The surface mount package dictates the manufacturing process; verify assembly capabilities for the 40-pin SOP format before finalizing the bill of materials.

Part Context

Mentech Technology USA Inc. specializes in R&D and production of electronic components, including transformers and inductors. The H4001CG belongs to their LAN transformer series, designed for high-volume manufacturing and surface mount applications. The manufacturer provides ODM and JDM services alongside standard product offerings.

FAQ

Does the H4001CG support Power over Ethernet (PoE)?

No, the H4001CG does not support PoE.

What is the maximum isolation voltage?

The isolation voltage is 1.5kVrms.
