Product Detailed Parameters
- Description：4700 MHZ HEMI PATCH ANTENNA
- Series：-
- Mfr：Antenna Technologies Limited Company
- Package：Box
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：4.7GHz
- Frequency Range：4.4GHz ~ 5GHz
- Antenna Type：-
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：9dBi
- Features：-
- Termination：SMA Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：0.382" (9.70mm)
- Applications：-
- Power - Max：10 W
Download product information
Overview

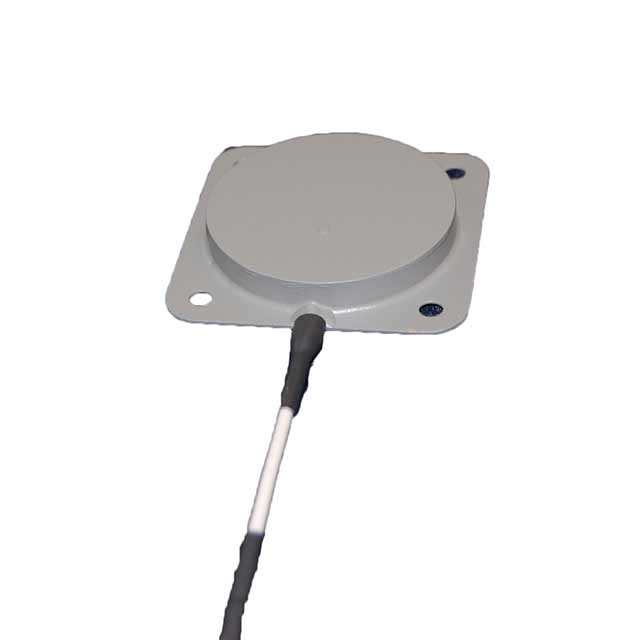

The H4700RCCBSESF3I is a hemi patch antenna manufactured by Antenna Technologies Limited Company, designed for operation at a center frequency of 4700 MHz. This component functions as an RF antenna featuring an SMA female panel connector interface. The device is engineered to support wireless communication applications requiring reliable signal transmission and reception within the specified microwave frequency band.
Feature Summary
- Hemi patch antenna design optimized for specific directional radiation patterns
- Integrated SMA female connector for secure panel mounting and cable attachment
- Engineered for stable performance at 4700 MHz operating frequency
Applications
- Commercial enterprise wireless network infrastructure
- Defense wireless communication systems
- Microwave data link implementations
Procurement Notes
Verify the exact datasheet version and mechanical dimensions against official Antenna Technologies documentation before integration. Confirm that the SMA female panel mount configuration aligns with your enclosure design requirements. Ensure compatibility with the 4700 MHz operational environment and validate regulatory compliance for the intended deployment region.
Selection Notes
Select this model when a fixed-frequency hemi patch solution is required for 4700 MHz applications. Consider the SMA female panel interface for direct chassis mounting scenarios. Evaluate space constraints against the physical footprint of the patch design to ensure proper fit within the target assembly without compromising structural integrity or signal performance.
Part Context
Antenna Technologies Limited Company specializes in designing and manufacturing antennas for commercial and defense wireless applications. This product line focuses on providing reliable RF components tailored for enterprise and military-grade communication systems, emphasizing durability and precise frequency performance for critical wireless infrastructure needs.
Replacement Considerations
Consult official manufacturer cross-reference lists for verified substitutes. Generic replacements may not match the specific hemi patch radiation characteristics or SMA connector specifications required for 4700 MHz operations.
