H5007ENL

Overview

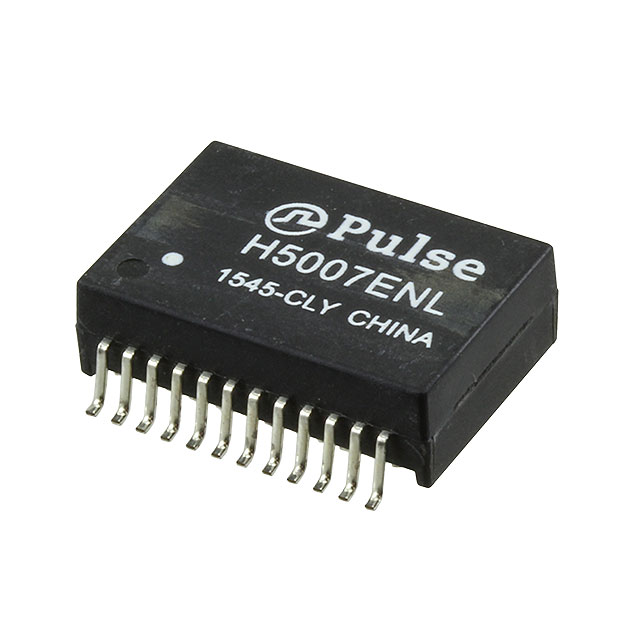

The H5007ENL is a single-channel LAN discrete transformer module manufactured by Pulse Electronics. Designed for surface-mount assembly, this component supports 10/100/1000 Base-T Ethernet applications without Power over Ethernet (PoE) functionality. It features a 24-pin configuration with a 1:1 turns ratio and provides electrical isolation rated at 1.5 kVrms. The module operates within a frequency range of 1 MHz to 100 MHz and maintains an inductance of 350 µH. Physical dimensions are 17.53 mm in length, 12.2 mm in width, and 5.51 mm in height. It complies with IEEE 802.3 standards and RoHS directives.

Feature Summary

• Provides electrical circuit isolation compliant with IEEE 802.3 standards for signal integrity
• Optimized for major LAN transceivers in demanding networking environments
• Supports peak reflow temperature ratings up to +245°C for robust manufacturing compatibility

Applications

• 1000 Base-T Ethernet network interfaces
• 10/100 Base-T data communication systems
• LAN transceiver circuit isolation modules

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm pinout, shielding status, and packaging type. Ensure the selected variant matches the required thermal management and mechanical footprint constraints for the target PCB layout. Cross-reference datasheet revisions to confirm compliance with current environmental regulations before finalizing procurement orders.

Selection Notes

Select this component when designing non-PoE Ethernet links requiring high-frequency signal integrity and galvanic isolation. Confirm that the 24-pin SMD package fits the available board space and that the 1.5 kV isolation rating meets system safety requirements. Validate that the operating temperature range aligns with the intended deployment environment and that the 350 µH inductance is compatible with the connected transceiver specifications.

Part Context

This part belongs to the H5007 series of LAN discrete transformer modules from Pulse Electronics. These components are engineered to provide reliable signal coupling and isolation for various Ethernet speeds. The series is widely utilized in network interface cards and switches where standard copper-based connectivity is required without power delivery capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
