Product Detailed Parameters
- Description：TRANSFORMER MODULE GIGABIT 2PORT
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transformer Type：Isolation and Data Interface (Encapsulated)
- Inductance：-
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Surface Mount
- Size / Dimension：1.095" L x 0.480" W (27.81mm x 12.19mm)
- Height - Seated (Max)：0.295" (7.49mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview

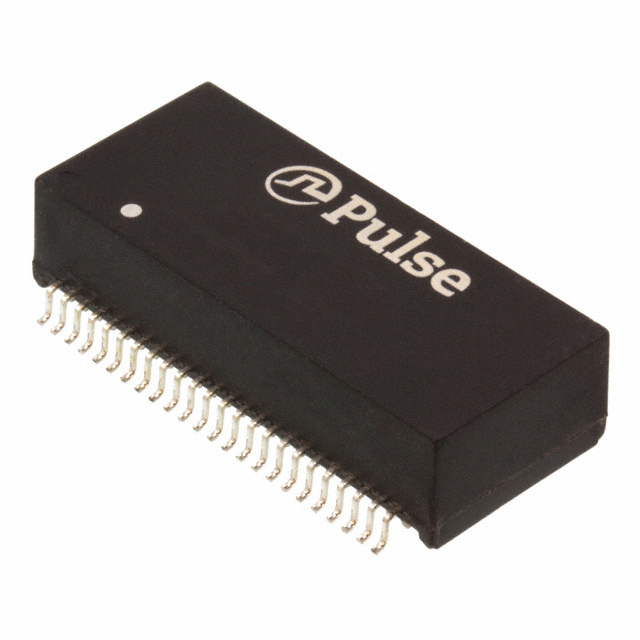

The H5014NLT is a surface-mount pulse transformer module designed for Gigabit Ethernet applications, specifically supporting 10/100/1000 Base-T standards. It features a dual-port configuration with a turns ratio of 1CT:1CT for both transmitter and receiver channels. The component has an inductance of 350µH and operates within a temperature range of 0°C to 70°C. Its physical dimensions are 27.81mm in length, 12.19mm in width, and a maximum height of 7.49mm. The device is RoHS compliant and carries an MSL rating of 1.
Feature Summary
- Supports 10/100/1000 Base-T network protocols
- Dual-port encapsulated design for integrated circuit isolation
- Surface mount package optimized for automated assembly
Applications
- Gigabit Ethernet transceiver modules
- Network interface card (NIC) designs
- Ethernet switch port circuits
- Industrial communication equipment requiring 1000Base-T connectivity
Procurement Notes
Verify the specific suffix 'NLT' against the target PCB footprint and reflow soldering profile requirements. Confirm that the non-PoE specification aligns with the power delivery architecture of the end application. Ensure compatibility with the intended operating temperature range of 0°C to 70°C before finalizing procurement orders.
Selection Notes
Select this component when a dual-port, non-Power over Ethernet solution is required for Gigabit Ethernet interfaces. The 350µH inductance value must match the impedance matching requirements of the connected PHY chip. Consider the 7.49mm height constraint if vertical clearance is limited on the printed circuit board layout.
Part Context
This part belongs to Pulse Electronics' LAN transformer family, which provides magnetics solutions for various Ethernet speeds. The H5014 series is distinct from PoE-enabled variants, focusing solely on data signal integrity and isolation for standard gigabit networking environments without power transmission capabilities.
Replacement Considerations
The H5014NL is a parameter-equivalent alternative available from the same manufacturer. Verify pinout compatibility and mechanical dimensions before substitution.
