Product Detailed Parameters
- Description：MODULE MINI-MAG 1PORT 1000BASE-T
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Transformer Type：Isolation and Data Interface (Encapsulated)
- Inductance：-
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1:01
- Mounting Type：Surface Mount
- Size / Dimension：0.785" L x 0.551" W (19.94mm x 14.00mm)
- Height - Seated (Max)：0.100" (2.54mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview

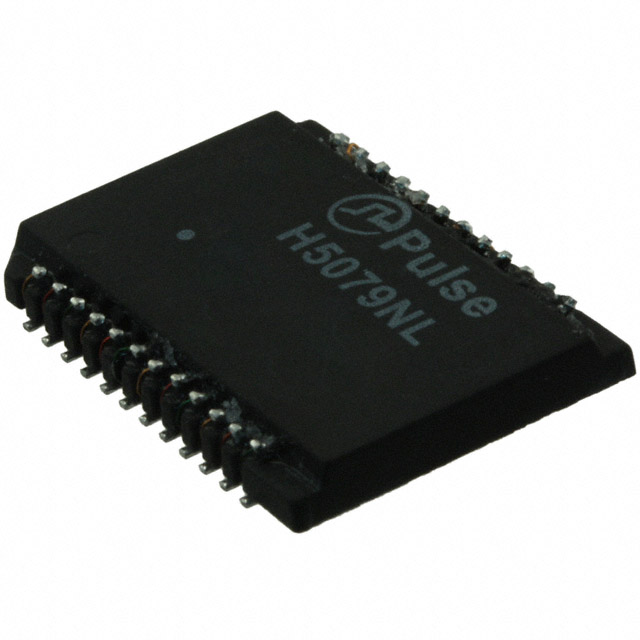

The H5079NL is a single-port LAN transformer module manufactured by Pulse Electronics, designed for Surface Mount Device (SMD) applications. It supports 1000Base-T Ethernet standards and operates within a frequency range of 1 MHz to 100 MHz. The component features an inductance of 350 uH and provides an insulation voltage of 1.5 kV. It has a turn ratio of 1:1 and is unshielded. The physical dimensions are 19.94 mm in length, 14.7 mm in width, and 2.54 mm in height. The unit weighs approximately 1.14 g.
Feature Summary
- Supports 1000Base-T Gigabit Ethernet data transmission
- Provides electrical isolation with 1.5 kV insulation voltage
- Designed for surface mount PCB integration
Applications
- 1000 Base-T network interface circuits
- Single-port Ethernet connectivity modules
- Non-PoE signal transformation systems
Procurement Notes
Verify RoHS compliance status and REACH SVHC declarations prior to procurement. Confirm moisture sensitivity level requirements for storage and handling procedures. Ensure the specific package type matches the intended PCB footprint design. Check for any recent product change notices that may affect specifications or availability.
Selection Notes
Select this component for applications requiring a single-port 1000Base-T solution without Power over Ethernet capabilities. Consider the unshielded nature of the module when designing for electromagnetic interference environments. Verify that the operating temperature range meets the system's thermal requirements.
Part Context
This part belongs to the H5079 series of audio and signal transformers from Pulse Electronics. It is categorized under LAN transformers and serves as a specialized component for high-speed data communication interfaces. The module integrates magnetic components necessary for signal coupling and isolation in Ethernet networks.
Replacement Considerations
The H5079NLT is a variant of this component available in tape and reel packaging. Verify if the reel format is required for automated assembly processes instead of the tube packaging used by the H5079NL.
