H5610NLT

Overview

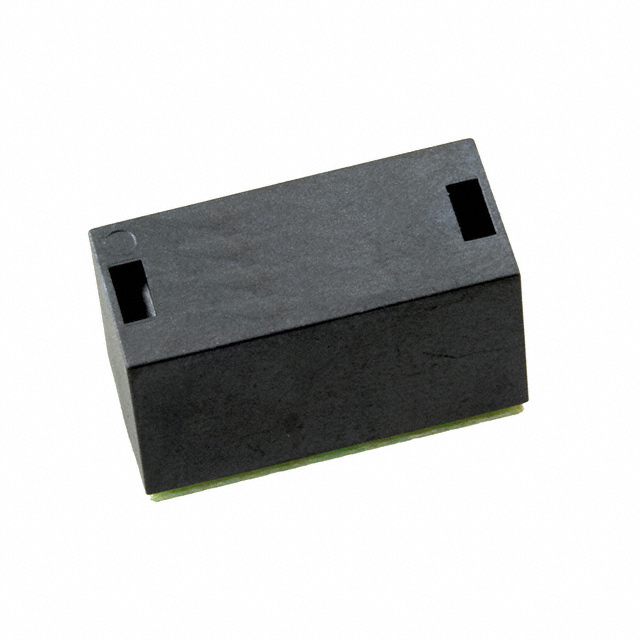

The H5610NLT is a LAN pulse transformer module from Pulse Electronics, designed for 10/100/1000 Base-T applications. It features a single channel with a 350 µH inductance and operates within a frequency range of 1 MHz to 125 MHz. The component supports surface mount technology in a BGA package measuring 17.27 mm x 7.87 mm x 11.18 mm. It provides 1.5 kV insulation voltage and functions between -40°C and +85°C. The unit includes 1CT:1CT turns ratios for both transmitter and receiver sides.

Feature Summary

• Supports 10/100/1000 Base-T Ethernet standards
• Integrated pulse transformer module design
• High insulation voltage capability

Applications

• LAN network interface circuits
• Ethernet transceiver modules
• Telecommunications equipment

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with the target PCB footprint and soldering profile. Check for RoHS compliance status and moisture sensitivity level requirements before integration into production assemblies.

Selection Notes

Select this component for designs requiring integrated LAN isolation and signal conditioning. Consider the BGA package size constraints and thermal operating range limits. Evaluate the 1.5 kV insulation requirement against system safety standards. Confirm that the 350 µH inductance meets the specific impedance matching needs of the Ethernet PHY.

Part Context

This part belongs to the HX series of audio and signal transformers from Pulse Electronics. It is categorized under LAN transformers and serves as a critical passive component for physical layer connectivity. The module integrates magnetic components typically found in discrete transformer designs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
