H6062FNL

Overview

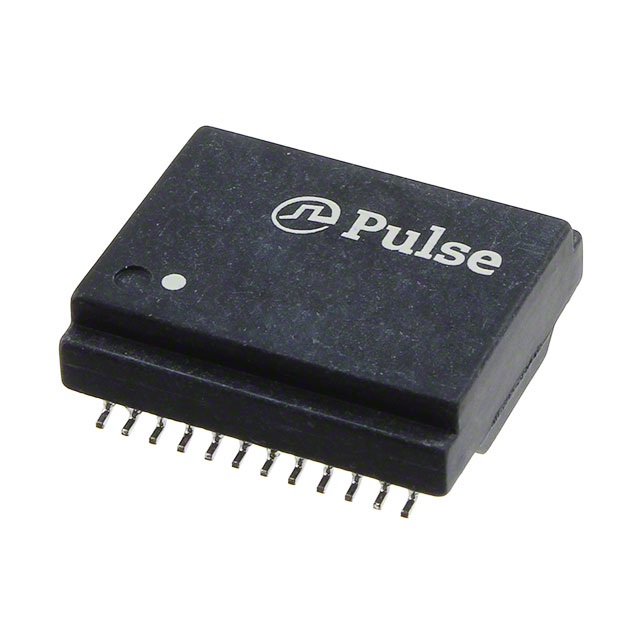

The H6062FNL is a single-port LAN transformer module manufactured by Pulse Electronics, designed for 1000Base-T Power over Ethernet (PoE) applications. It features surface mount termination and operates within a frequency range of 1 MHz to 100 MHz. Key electrical specifications include an inductance of 350 uH, an isolation voltage of 1.5 kV, and a DC resistance of 0.65 Ohms. The component supports a turns ratio of 1:1 for both transmitter and receiver sections. It functions reliably within an operating temperature range of 0°C to +70°C.

Feature Summary

• Integrated magnetic solution supporting Gigabit Ethernet data transmission with simultaneous PoE power delivery
• Surface mount construction optimized for automated PCB assembly processes
• High insulation voltage capability ensuring safety isolation between circuit ports

Applications

• Gigabit Ethernet network interface cards
• PoE-enabled networking switches
• Industrial communication gateways

Procurement Notes

Verify the specific suffix 'FNL' against official datasheets to confirm package dimensions and pinout compatibility. Ensure the selected variant matches the required PoE standard and impedance characteristics for the target circuit design before finalizing procurement orders.

Selection Notes

Select this component when designing single-port Gigabit Ethernet interfaces requiring integrated PoE support. Consider the physical footprint constraints and thermal management requirements associated with surface mount transformers in dense electronic assemblies.

Part Context

This part belongs to the Star Magnetics series of LAN transformers from Pulse Electronics. It serves as a critical interface component for isolating and matching impedances in high-speed digital communication lines while facilitating power injection over twisted pair cables.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
