H6096FNLT

Overview

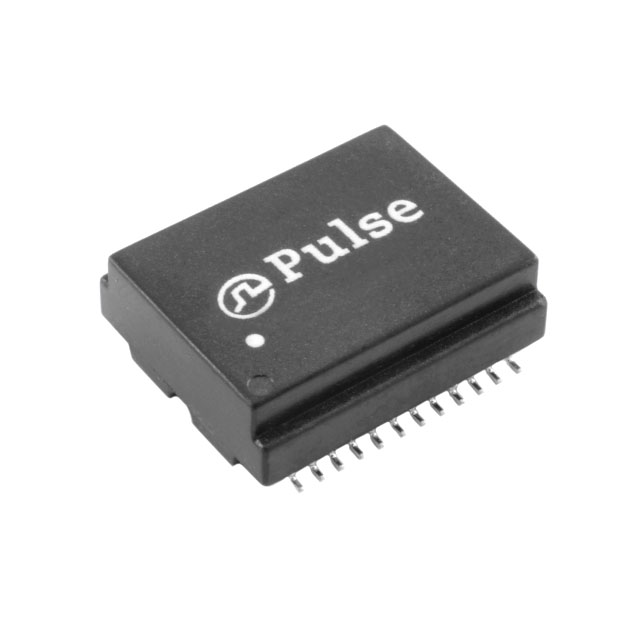

The H6096FNLT is a surface-mount pulse transformer manufactured by Pulse Electronics, designed for LAN applications supporting 10/100/1000 Base-T standards. It features a 350µH inductance with a 1CT:1CT turns ratio for both transmitter and receiver channels. The component operates within a temperature range of 0°C to 70°C and measures 18.16mm x 15.11mm x 6.60mm. It complies with RoHS3 specifications and carries an MSL rating of 1.

Feature Summary

• Supports Gigabit Ethernet (10/100/1000 Base-T) data transmission
• Integrated PoE+ capability for power delivery over network cables
• Surface mount construction for automated PCB assembly

Applications

• Gigabit Ethernet network interface cards
• PoE-enabled networking switches
• Industrial communication modules

Procurement Notes

Verify the specific suffix 'FNLT' against current datasheets to confirm package dimensions and termination style. Check for Product Change Notifications regarding recent manufacturing updates or material substitutions. Ensure compatibility with existing board layouts as physical dimensions are critical for SMD placement.

Selection Notes

Select this component when designing systems requiring integrated PoE+ support alongside Gigabit data rates. Confirm that the 0°C to 70°C operating temperature range meets the environmental requirements of the target application. Verify that the surface mount footprint matches the design constraints.

Part Context

This part belongs to the HX series of pulse transformers from Pulse Electronics. It serves as a signal isolation and impedance matching component in Ethernet PHY circuits. The device integrates magnetics for single-port applications, reducing the overall component count on the motherboard or network card.

Replacement Considerations

The HX6096FNLT is listed as obsolete; verify if HX6096NLT or other updated series parts serve as direct replacements.
