H6096NLT

Overview

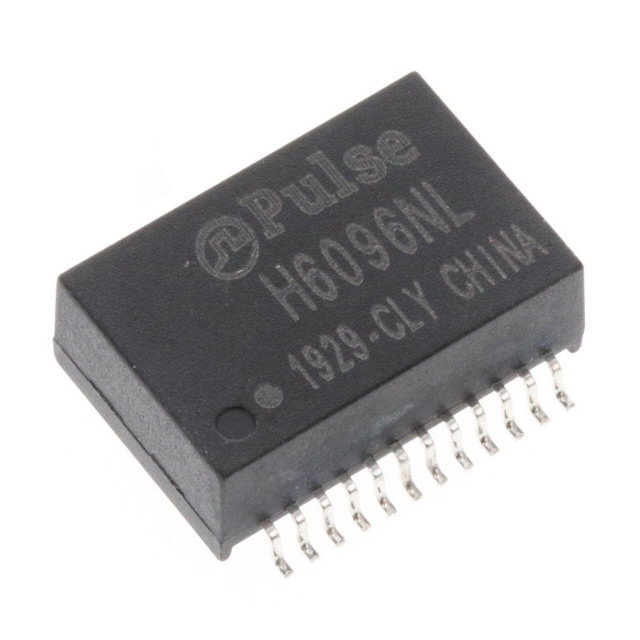

The H6096NLT is a single-port pulse transformer designed for 1000Base-T applications. It features an inductance of 350 uH and a DC resistance of 0.3 Ohms with a 1:1 turns ratio. The component supports Surface Mount Device (SMD) installation, measuring 18.16 mm in length and 12.2 mm in width. It operates within a temperature range of -40 C to +125 C and complies with RoHS standards.

Feature Summary

• Supports Power over Ethernet Plus (PoE+) functionality
• Optimized for Gigabit Ethernet (1000Base-T) signal transmission
• Designed for surface mount integration on printed circuit boards

Applications

• Gigabit Ethernet network interface cards
• Ethernet switch port circuits
• Network adapter hardware

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to ensure correct packaging configuration. Confirm that the selected variant matches the required thermal operating range and physical footprint specifications for the target application design.

Selection Notes

Select this component when a single-port solution for 1000Base-T connectivity is required. Ensure the design accommodates the specified SMD dimensions and thermal limits. Validate compatibility with PoE+ power delivery requirements alongside data signal integrity needs.

Part Context

This part belongs to the Pulse Electronics LAN transformer series. It serves as a critical isolation and impedance matching element in high-speed digital communication interfaces. The component facilitates reliable data transfer while maintaining electrical separation between network segments.

Replacement Considerations

HX6096FNLT is a documented alternative variant within the same product family.
