H6600NLT

Overview

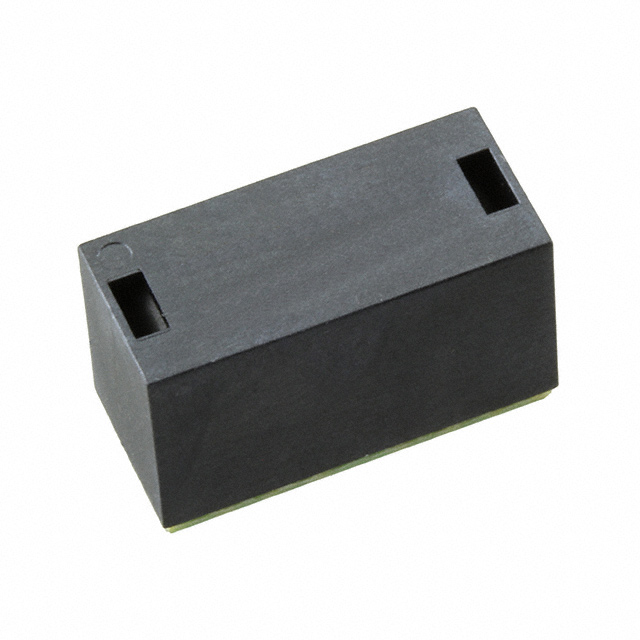

The H6600NLT is a LAN 10G Base-T pulse transformer module manufactured by Pulse Electronics. It features a 1:1 turns ratio and an inductance of 120µH. Designed for surface mount installation, the component measures 17.27mm in length, 7.87mm in width, and has a maximum height of 11.18mm. It operates within a temperature range of 0°C to 70°C and complies with RoHS3 standards.

Feature Summary

• Engineered specifically for 10G Base-T network applications
• Surface mount construction for automated assembly
• Integrated module design simplifies circuit layout

Applications

• 10 Gigabit Ethernet network interfaces
• Server networking hardware
• High-speed data communication equipment

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging formats such as tape and reel or cut tape. Confirm that the 120µH inductance specification aligns with the target 10G Base-T circuit design requirements before finalizing procurement orders.

Selection Notes

Select this component when designing systems requiring 10G Base-T connectivity. Ensure the physical footprint dimensions of 17.27mm by 7.87mm fit the available PCB space. Verify that the operating temperature range meets the environmental conditions of the intended deployment location.

Part Context

This part belongs to the Pulse Electronics LAN transformer portfolio. It serves as a critical isolation component for high-speed Ethernet links. The module integrates necessary magnetic elements into a single surface-mount package to support modern networking standards.

FAQ

What is the primary application standard for this transformer?

It is designed for 10G Base-T applications.

Does this component support Power over Ethernet?

The provided documentation does not specify PoE support; it is described primarily as a 10G Base-T pulse transformer.
