H6FM2G595T2MZ-Z

Overview

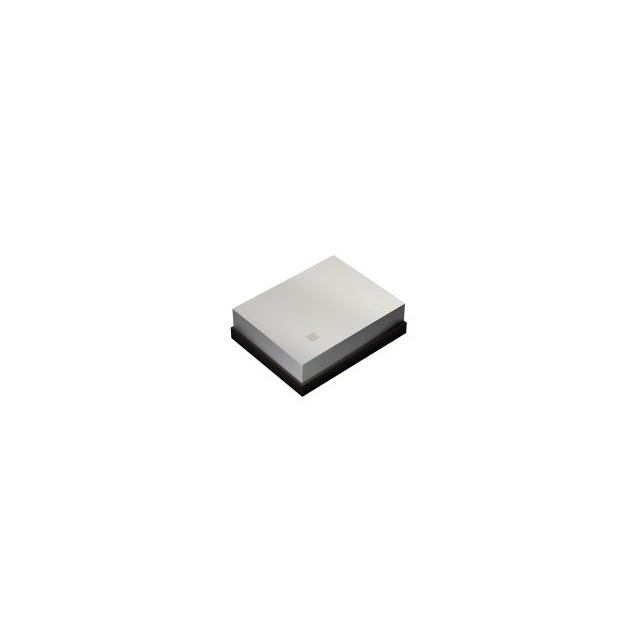

The H6FM2G595T2MZ-Z is a Surface Acoustic Wave (SAW) RF filter manufactured by Taiyo Yuden. It is designed for LTE and TD-SCDMA wireless applications. The component operates within a frequency range of 1 GHz to 5 GHz and features a 50 Ohms impedance. It utilizes an SMD/SMT termination type and is housed in an 8-SMD, No Lead package. The device supports a triple filter function with a bandwidth of 2.7dB. It functions reliably within a temperature range of -30°C to +85°C.

Feature Summary

• Surface Acoustic Wave technology for RF filtering
• Designed for LTE and TD-SCDMA wireless applications
• Triple filter function capability
• Compact surface-mount packaging

Applications

• LTE wireless communication systems
• TD-SCDMA wireless applications
• RF signal conditioning modules

Procurement Notes

Verify the specific datasheet version and pin configuration against official Taiyo Yuden documentation before integration. Confirm that the 8-SMD, No Lead package dimensions match your PCB footprint requirements. Ensure the operating temperature range of -30°C to +85°C aligns with your system's environmental conditions. Cross-reference the 50 Ohms impedance specification with your circuit design parameters to ensure proper matching.

Selection Notes

Select this component when designing for LTE or TD-SCDMA bands requiring SAW filter performance. Consider the 1 GHz to 5 GHz frequency range suitability for your specific application needs. Evaluate the 8-SMD, No Lead package for space-constrained designs. Verify compatibility with SMD/SMT assembly processes. Assess the -30°C to +85°C operational range against your environmental constraints.

Part Context

Taiyo Yuden produces a range of SAW filters for mobile communications. This model belongs to their RF filter portfolio, targeting specific cellular standards. The company specializes in passive components for electronic devices. Their SAW filters are known for reliability in wireless infrastructure and handsets. This part represents their solution for specific frequency band filtering requirements.

Replacement Considerations

Check for direct substitutes from Taiyo Yuden with similar SAW characteristics. Verify if other manufacturers offer compatible LTE/TD-SCDMA filters. Ensure any replacement matches the 8-SMD package and 50 Ohms impedance. Confirm identical frequency range and temperature specifications.
