H7008FNL

Overview

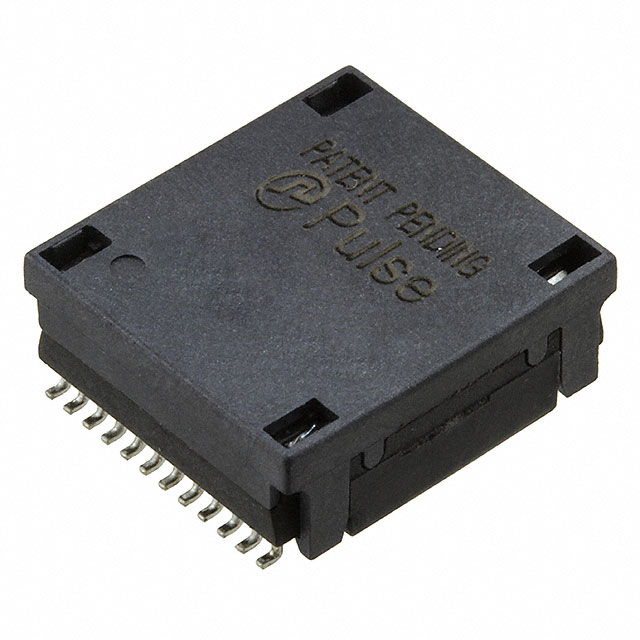

The H7008FNL is a LAN 10G Base-T pulse transformer module manufactured by Pulse Electronics. It features a single port configuration with a 1:1 turns ratio and an inductance of 200µH. Designed for surface mount installation, the component measures 15.00mm in length, 13.70mm in width, and has a maximum height of 11.18mm. It operates within a temperature range of 0°C to 70°C and provides an isolation voltage of 1.5kV.

Feature Summary

• Integrated 10GBase-T transformer module design
• Surface mount package construction
• Single port signal transmission capability

Applications

• 10 Gigabit Ethernet network interfaces
• Server motherboard LAN ports
• Network switch circuitry

Procurement Notes

Verify the specific suffix against official documentation, as variations exist between tape-and-reel and tube packaging formats. Confirm that the selected variant matches the required isolation voltage and inductance specifications for the target 10GBase-T application. Ensure compliance with RoHS standards and check moisture sensitivity levels prior to assembly.

Selection Notes

Select this component for high-speed data applications requiring robust signal integrity over twisted pair cabling. The 200µH inductance supports stable operation at 10G speeds. Consider the physical dimensions and surface mount requirements when designing PCB layouts for server or networking equipment chassis.

Part Context

This part belongs to the Pulse Electronics audio and signal transformers category, specifically designed for LAN applications. It serves as a critical interface component for connecting Ethernet PHY chips to external cabling, ensuring proper impedance matching and signal coupling for 10GBASE-T standards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
