H7008FNLT

$7.34

Description：TRANSFORMER MODULE 10GBASE-T
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c75531817d32 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TRANSFORMER MODULE 10GBASE-T
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10G Base-T
Inductance：200µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.591" L x 0.539" W (15.00mm x 13.70mm)
Height - Seated (Max)：0.230" (5.85mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

H7008FNLT

Overview

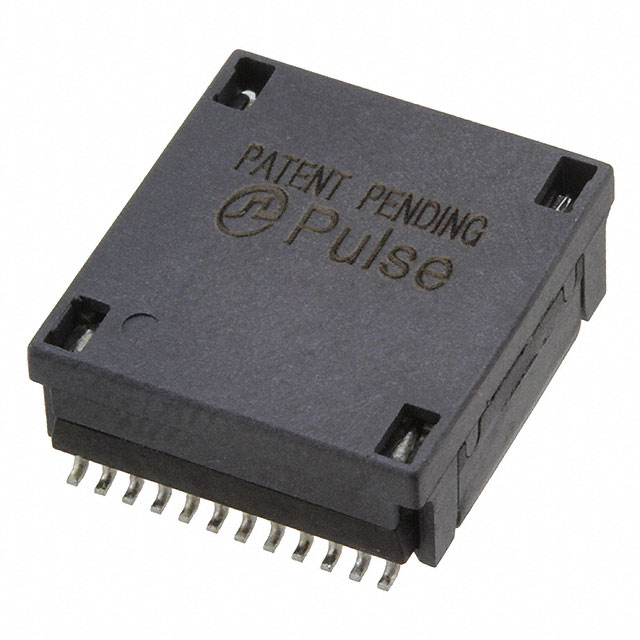

The H7008FNLT is a LAN 10G Base-T pulse transformer module manufactured by Pulse Electronics. It features a 1:1 turns ratio and an inductance of 200µH. Designed for surface mount installation, the component measures 15.00mm in length, 13.70mm in width, and has a maximum height of 5.85mm. It operates within a temperature range of 0°C to 70°C and complies with RoHS3 standards.

Feature Summary

Integrated module design for 10G Base-T applications
Surface mount construction for automated assembly
Single channel configuration with 1:1 turns ratio

Applications

10G Base-T network interface circuits
Ethernet switch port implementations
Network interface card (NIC) designs

Procurement Notes

Verify the specific ordering suffix to ensure correct packaging format, such as tape and reel or cut tape, as these affect handling procedures. Confirm that the component meets the required environmental certifications, including RoHS3 compliance, for the target market. Cross-reference the manufacturer part number with official distributor databases to validate current availability status and lead times before finalizing procurement plans.

Selection Notes

Select this component when designing systems requiring a single-channel 10G Base-T solution with a 200µH inductance specification. Ensure the PCB layout accommodates the 15.00mm x 13.70mm footprint and 5.85mm height clearance. Verify thermal management capabilities to maintain operation within the 0°C to 70°C range under expected load conditions.

Part Context

This component belongs to the H7008 series of integrated connector modules from Pulse Electronics. These modules are engineered specifically for high-speed data transmission applications, providing isolation and signal integrity for Ethernet interfaces. The series supports various mounting configurations and electrical specifications tailored for modern networking hardware requirements.

Replacement Considerations

Consult official Pulse Electronics documentation for qualified substitute part numbers. Verify pin compatibility and electrical parameters before substituting.
