H7019FNLT

Overview

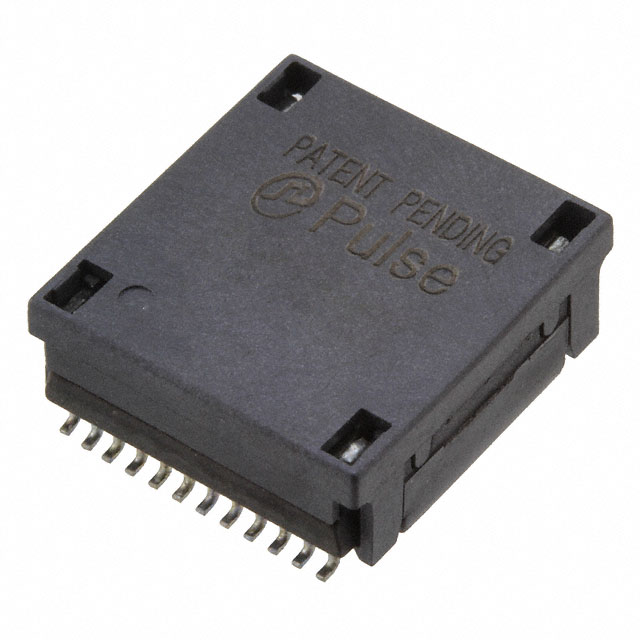

The H7019FNLT is a surface mount LAN transformer module designed for 10G Base-T applications. It features a 1:1 turns ratio and an inductance of 100 µH. The component supports a common mode voltage of 1.5 kVrms. It operates within a temperature range of 0°C to 70°C. The package dimensions are 0.6 inches by 0.6 inches.

Feature Summary

• Integrated magnetic solution for 10 Gigabit Ethernet connectivity
• Surface mount design for automated assembly processes
• High isolation voltage capability for signal integrity

Applications

• 10G Base-T network interface cards
• Ethernet switch port circuits
• Server motherboard LAN controllers

Procurement Notes

Verify RoHS compliance status as sources indicate conflicting information regarding regulatory adherence. Confirm current stock availability since some distributors list the item as discontinued or out of stock. Check for recent Product Change Notifications that may affect part specifications or packaging details before finalizing procurement orders.

Selection Notes

Select this component for designs requiring a compact, single-port 10G Base-T transformer. Ensure the PCB layout accommodates the specified surface mount footprint. Verify that the 1.5 kVrms isolation rating meets the system's safety requirements. Consider alternative packages if different mounting styles are required for the specific application.

Part Context

This part belongs to Pulse Electronics' LAN transformer family. It is specifically engineered for high-speed data transmission standards. The module integrates primary and secondary windings into a single surface mount unit. It replaces discrete transformer solutions to save board space and simplify assembly.

Replacement Considerations

Check for direct substitutes with identical pinouts and electrical characteristics. Verify compatibility with existing 10G Base-T PHY chips. Review any official end-of-life notices from the manufacturer to ensure long-term supply stability.
