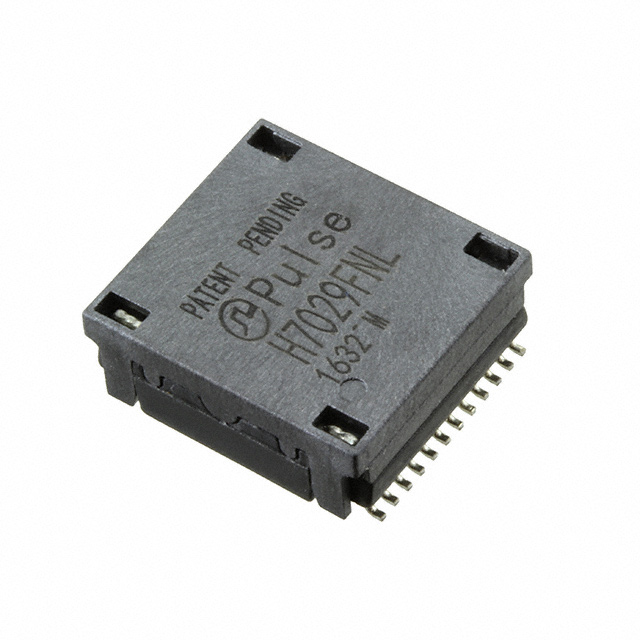

H7029FNLT

Overview

The H7029FNLT is a discrete LAN pulse transformer designed for 10G Base-T applications. It features an inductance of 120µH with a 1:1 turns ratio. The component utilizes a surface-mount package measuring 13.70mm x 15.00mm x 5.85mm. It operates within a temperature range of 0°C to 70°C and complies with RoHS3 standards.

Feature Summary

• Designed specifically for 10G Base-T LAN interfaces
• Discrete four-channel configuration
• Surface-mount construction for automated assembly

Applications

• 10 Gigabit Ethernet network interface cards
• Server motherboard LAN ports
• High-speed data communication equipment

Procurement Notes

Verify the specific suffix 'FNLT' against the official datasheet to confirm the tape-and-reel packaging format. Ensure the procurement order matches the required moisture sensitivity level and environmental compliance status documented by Pulse Electronics for this exact part number.

Selection Notes

Select this component when a discrete solution is required for 10G Base-T designs rather than an integrated connector module. Confirm that the physical footprint of 13.70mm x 15.00mm fits the PCB layout constraints and that the operating temperature range aligns with the system environment.

Part Context

This part belongs to the Pulse Transformers category, specifically serving as a signal conditioning component for high-speed digital interfaces. It functions alongside other passive components to ensure signal integrity in Ethernet PHY circuits.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official substitution guide or engineering change notices for verified alternatives.
