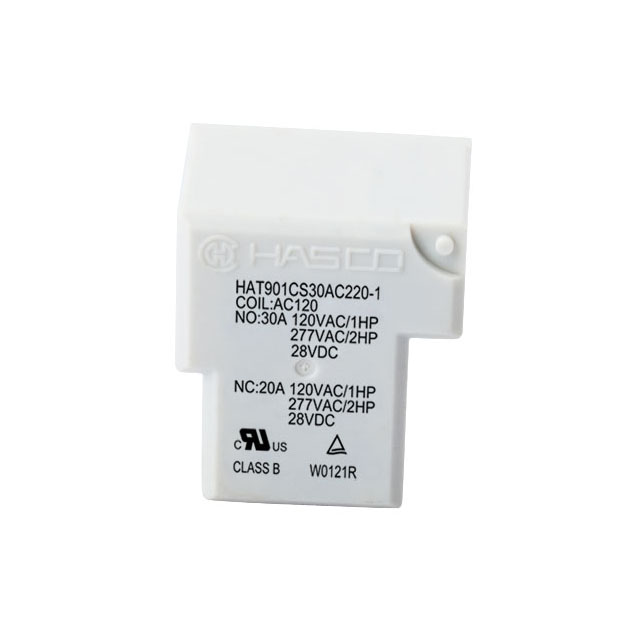

HAT901CS30AC220-1 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Hasco Relays. Its product description is RELAY SPDT 30A 220V. Review the specifications below when checking this part for your BOM.
Power Relays, Over 2 Amps specifications for HAT901CS30AC220-1
- Description：RELAY SPDT 30A 220V
- Series：HAT901
- Mfr：Hasco Relays
- Package：Tube
- Mounting Type：Through Hole
- Coil Voltage：220VAC
- Contact Form：SPDT (1 Form C)
- Contact Rating (Current)：30 A
- Switching Voltage：277VAC
- Load - Max Switching：-
- Coil Current：16.3 mA
- Coil Type：Non Latching
- Features：-
- Termination Style：PC Pin
- Seal Rating：Sealed - Fully
- Coil Insulation：Class B
- Must Operate Voltage：176 VAC
- Must Release Voltage：22 VAC
- Operating Temperature：-40°C ~ 85°C
- Contact Material：Silver Alloy
- Approval Agency：-
- Relay Type：-
- Grade：-
- Qualification：-
- Operate Time：15 ms
- Release Time：10 ms
Power Relays, Over 2 Amps datasheet and documents for HAT901CS30AC220-1
