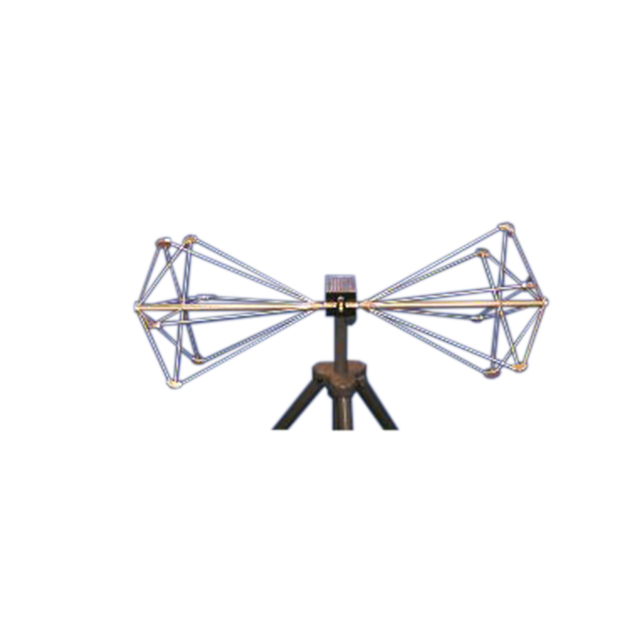

HBA-2030 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is RF ANT 160MHZ BICONICAL CONN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HBA-2030
- Description：RF ANT 160MHZ BICONICAL CONN
- Series：-
- Mfr：TDK Corporation
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：160MHz
- Frequency Range：20MHz ~ 300MHz
- Antenna Type：Biconical
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：-
- Features：-
- Termination：7/16 Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：54.331" (138.00cm)
- Applications：-
- Power - Max：3500 W
Antennas RF datasheet and documents for HBA-2030
Antennas RF Overview
The TDK HBA-2030 is a high-power biconical antenna engineered for electromagnetic compatibility (EMC) testing applications. It operates effectively within a frequency range of 20 MHz to 300 MHz, utilizing a patent-pending design to ensure optimum performance across this spectrum. The component is classified as an RF antenna and is manufactured by TDK Corporation.
Antennas RF Feature Summary
- High-power biconical antenna design
- Patent-pending construction for optimized performance
- Frequency range coverage from 20 MHz to 300 MHz
Antennas RF Applications
- EMC immunity testing
- Electromagnetic compatibility solutions
- Automated test systems integration
Antennas RF Procurement Notes
Verify the manufacturer origin, confirming TDK Corporation or TDK RF Solutions Inc. as the source. Ensure the part number matches exactly HBA-2030. Check for RoHS compliance status if required by project specifications. Confirm the product is new and original before procurement.
Antennas RF Selection Notes
Select this model specifically for EMC immunity testing requirements within the 20 MHz to 300 MHz band. Consider its high-power handling capabilities and patent-pending design features. Evaluate compatibility with automated test systems and anechoic chamber environments provided by TDK EMC solutions.
Antennas RF Part Context
This component belongs to the RF Antennas family offered by TDK RF Solutions Inc. It is part of a broader range of electromagnetic compatibility solutions that includes automated test systems, anechoic chambers, and software. The HBA-2030 serves as a specialized tool for precise EMC measurements.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult TDK technical support for potential alternatives if this specific model is unavailable.
