HBWS2012-33NJ

Overview

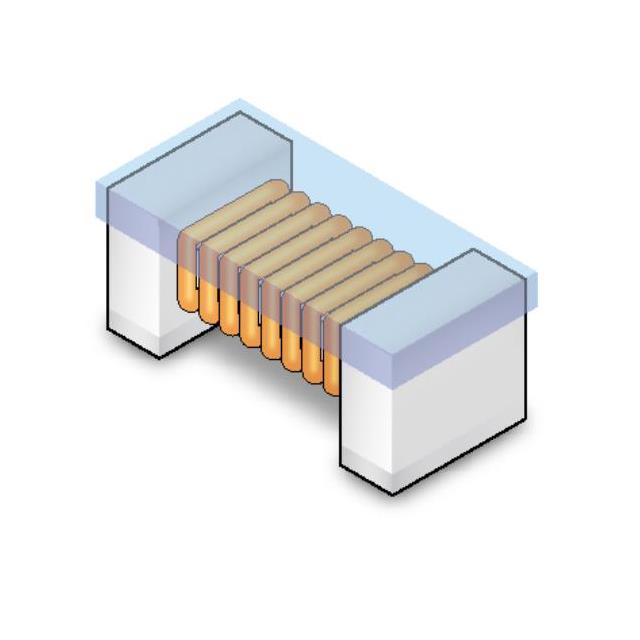

The HBWS2012-33NJ is a fixed wirewound inductor manufactured by Max Echo, designed for RF and power applications. It features an inductance of 33 nH with a maximum DC resistance of 150 mOhm and a current rating of 500 mA. The component utilizes an unshielded construction housed in a standard 0805 (2015 Metric) surface-mount package.

Feature Summary

• Unshielded wirewound construction suitable for specific RF environments
• Compact 0805 surface-mount footprint for space-constrained designs
• Optimized for both RF signal processing and power circuit integration

Applications

• RF circuit filtering and impedance matching
• Power supply output filtering stages
• General-purpose signal conditioning in electronic modules

Procurement Notes

Verify the exact manufacturer datasheet to confirm critical electrical parameters such as saturation current and thermal limits before finalizing the design. Ensure that the unshielded nature of the component aligns with the electromagnetic interference requirements of the target application environment.

Selection Notes

Select this component when a low-inductance value is required for high-frequency operation within a compact form factor. Consider the unshielded design implications regarding magnetic field coupling if placed near sensitive components or other inductive elements in close proximity on the PCB layout.

Part Context

This part belongs to Max Echo's line of fixed chip inductors, which are produced using multilayer printing and precise wirewound technologies. The manufacturer specializes in magnetic components including inductors, ferrite beads, and filters for industrial and automotive markets.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
