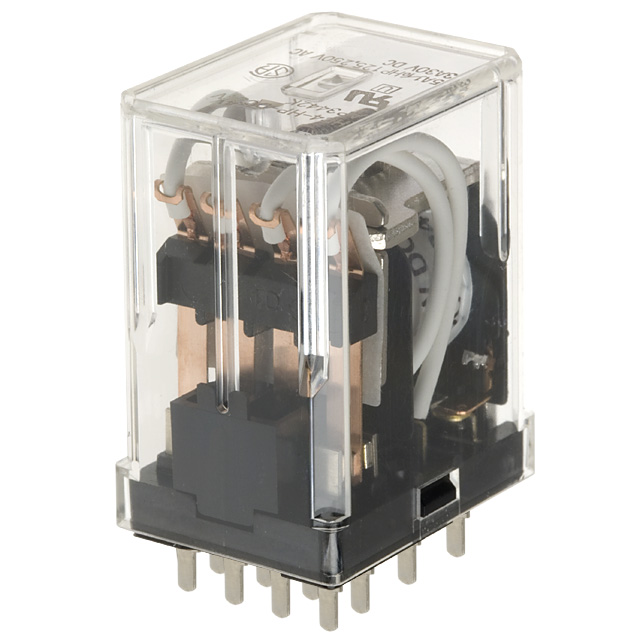

Power Relays, Over 2 Amps HC4-HP-DC24V product image

HC4-HP-DC24V

Description：RELAY GEN PURPOSE 4PDT 5A 24V
Series：HC
Mfr：Panasonic Electric Works
Package：Bulk

SKU:d35aa4a98314 Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HC4-HP-DC24V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE 4PDT 5A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for HC4-HP-DC24V

Description：RELAY GEN PURPOSE 4PDT 5A 24V
Series：HC
Mfr：Panasonic Electric Works
Package：Bulk
Mounting Type：Through Hole
Coil Voltage：24VDC
Contact Form：4PDT (4 Form C)
Contact Rating (Current)：5:00 AM
Switching Voltage：250VAC - Max
Load - Max Switching：1250VA
Coil Current：37 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：19.2 VDC
Must Release Voltage：2.4 VDC
Operating Temperature：-50°C ~ 70°C
Contact Material：Silver Nickel (AgNi), Gold (Au)
Approval Agency：CSA, UR, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：20 ms
Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for HC4-HP-DC24V
