HCB 2012KF-102T15

Chip Ferrite Bead Overview

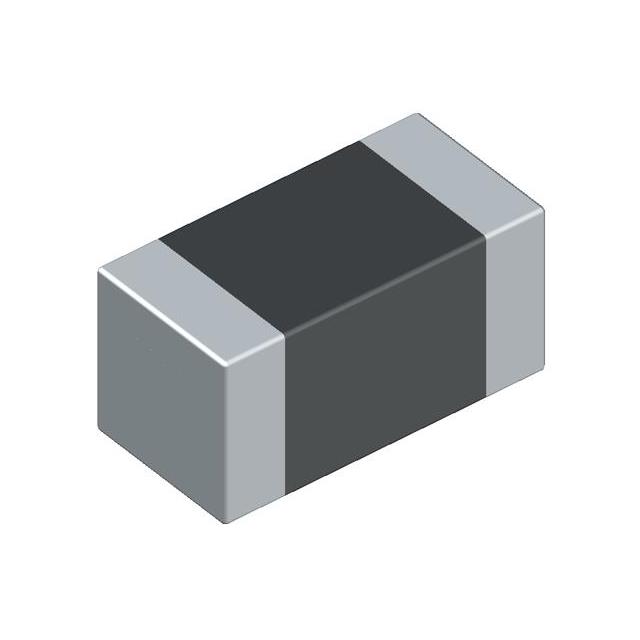

The HCB 2012KF-102T15 is a surface-mount ferrite bead manufactured by TAI-TECH Advanced Electronics Co., Ltd. It features an 0805 (2012 metric) package and provides an impedance of 1 kOhms at 100 MHz. The component supports a maximum rated current of 1.5A with a maximum DC resistance of 150mOhm. Designed for single-line applications, it serves as an EMI suppression filter within the HCB series, which specializes in high-current magnetic components.

Chip Ferrite Bead Feature Summary

• Provides effective electromagnetic interference suppression through high impedance characteristics at target frequencies
• Engineered for high-current handling capabilities suitable for power line filtering applications
• Utilizes a compact surface-mount form factor to facilitate automated assembly processes

Chip Ferrite Bead Applications

• Power supply input/output filtering
• DC-DC converter noise suppression
• General EMI mitigation in electronic circuits

Chip Ferrite Bead Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the required impedance, current rating, and package dimensions align with the design specifications. Check for any specific ordering suffixes or packaging variations that may affect availability or compatibility.

Chip Ferrite Bead Selection Notes

Select this component when high current capacity is required alongside significant noise attenuation. Ensure the operating current remains below the 1.5A limit to prevent saturation. Verify that the 0805 footprint fits the PCB layout constraints and that the impedance profile matches the noise frequency spectrum.

Chip Ferrite Bead Part Context

This component belongs to the HCB series from TAI-TECH, which focuses on high-current ferrite beads. The series is designed to address EMI issues in power lines where standard beads might saturate. TAI-TECH manufactures these components using advanced materials to balance low DC resistance with high impedance performance.

Chip Ferrite Bead Replacement Considerations

Consult official substitution lists for verified equivalents. Ensure replacement parts match the 1k Ohm impedance at 100 MHz, 1.5A current rating, and 0805 package size.
