HCB03-300-RC

Chip Ferrite Bead Overview

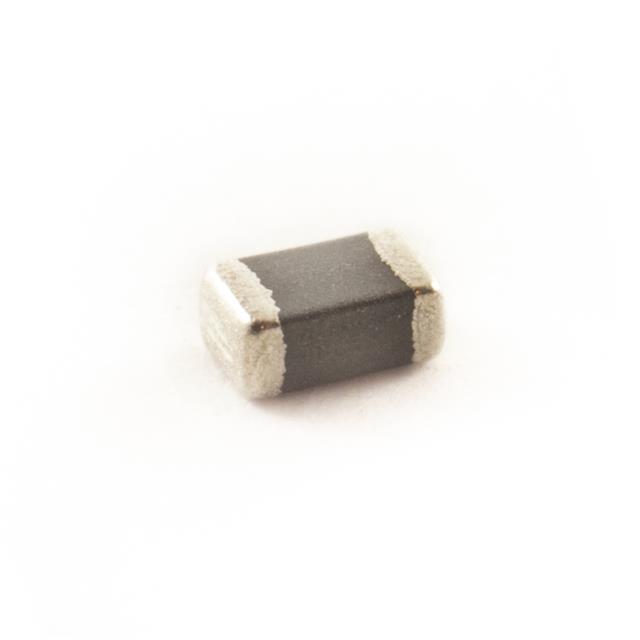

The HCB03-300-RC is a high-current ferrite bead manufactured by Allied Components International. It functions as a power line filter with one line of protection. The component exhibits an impedance of 30 Ohms at a frequency of 100 MHz. It is designed for surface-mount applications and is currently in active production status.

Chip Ferrite Bead Feature Summary

• Provides electromagnetic interference suppression for single-line power circuits
• Constructed as a high-current capable ferrite bead for robust performance
• Designed for surface-mount integration into electronic assemblies

Chip Ferrite Bead Applications

• Power line filtering in electronic devices
• Electromagnetic interference suppression in signal paths
• Noise reduction in telecommunications equipment

Chip Ferrite Bead Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and thermal characteristics before finalizing the design. Ensure the selected footprint matches the manufacturer's recommended land pattern. Confirm that the operating current requirements do not exceed the component's rated limits to prevent saturation or failure during operation.

Chip Ferrite Bead Selection Notes

Select this component when a single-line power filter with 30 Ohms impedance at 100 MHz is required. Consider the surface-mount package constraints and the high-current capability relative to the circuit's operational load. Evaluate the physical space available on the PCB against the component's nonstandard or standard package dimensions provided in the official documentation.

Chip Ferrite Bead Part Context

Allied Components International designs and manufactures magnetic components, including transformers and inductors, for commercial and industrial markets. This ferrite bead belongs to their range of passive components used for noise suppression and signal integrity management in various electronic systems.

Chip Ferrite Bead Replacement Considerations

Consult official distributor databases for cross-references. Verify that any substitute part matches the 30 Ohm impedance at 100 MHz and compatible current ratings. Ensure the replacement maintains the same surface-mount form factor for direct board compatibility.
