HCB05-800-RC

Chip Ferrite Bead Overview

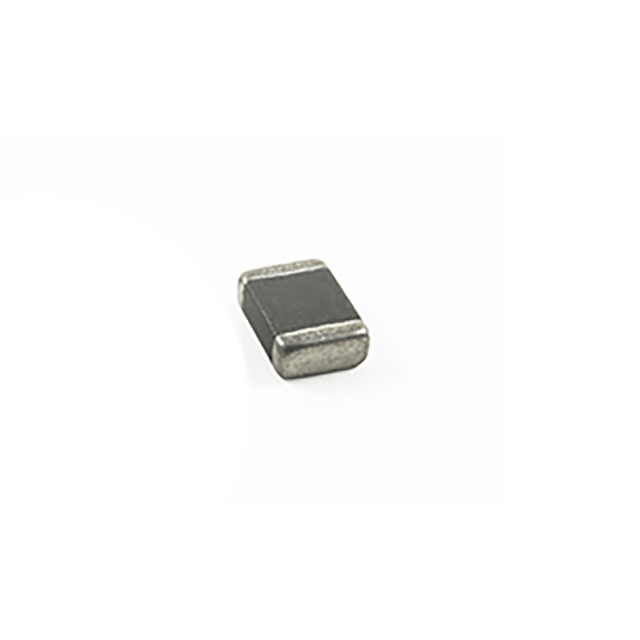

The HCB05-800-RC is a single-line ferrite bead manufactured by Allied Components International, designed for surface-mount applications. It features an impedance of 80 Ohms at 100 MHz and operates within a temperature range of -55°C to 125°C. The component utilizes a 0603 package format, providing a compact solution for high-current noise suppression in electronic circuits.

Chip Ferrite Bead Feature Summary

• Provides effective high-frequency noise attenuation through ferrite material properties
• Supports high current handling capabilities suitable for power line filtering
• Designed for reliable operation across extended industrial temperature ranges

Chip Ferrite Bead Applications

• High-current noise suppression in DC power lines
• EMI filtering in compact surface-mount circuit designs
• Signal integrity enhancement in high-speed digital interfaces

Chip Ferrite Bead Procurement Notes

Verify the specific impedance value and package dimensions against the official datasheet before integration. Confirm RoHS compliance status and soldering thermal profile requirements to ensure compatibility with your manufacturing process. Cross-reference the manufacturer's part number to avoid substitution errors.

Chip Ferrite Bead Selection Notes

Select this component when a low-profile 0603 footprint is required for high-current noise filtering. Ensure the target frequency aligns with the 80 Ohm impedance specification at 100 MHz. Evaluate the maximum operating current against circuit demands to prevent saturation or excessive heating during normal operation.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the HCB05 series from Allied Components International, which focuses on high-current bead solutions. The series offers various impedance values tailored for different noise suppression needs while maintaining a consistent small outline package for automated assembly.

Chip Ferrite Bead Replacement Considerations

Direct substitutes include other 0603 ferrite beads with similar 80 Ohm impedance at 100 MHz and comparable current ratings. Verify that alternative components meet the same thermal and mechanical specifications for seamless replacement.
