HCB118080S-181 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delta Electronics/Components. Its product description is FIXED IND 180NH 72A 0.17MOHM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for HCB118080S-181
- Description：FIXED IND 180NH 72A 0.17MOHM
- Series：-
- Mfr：Delta Electronics/Components
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：-
- Tolerance：-
- Current Rating (Amps)：-
- Current - Saturation (Isat)：-
- Shielding：-
- DC Resistance (DCR)：-
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：-
- Height - Seated (Max)：-
- Features：-
Fixed Inductors datasheet and documents for HCB118080S-181
Fixed Inductors Overview

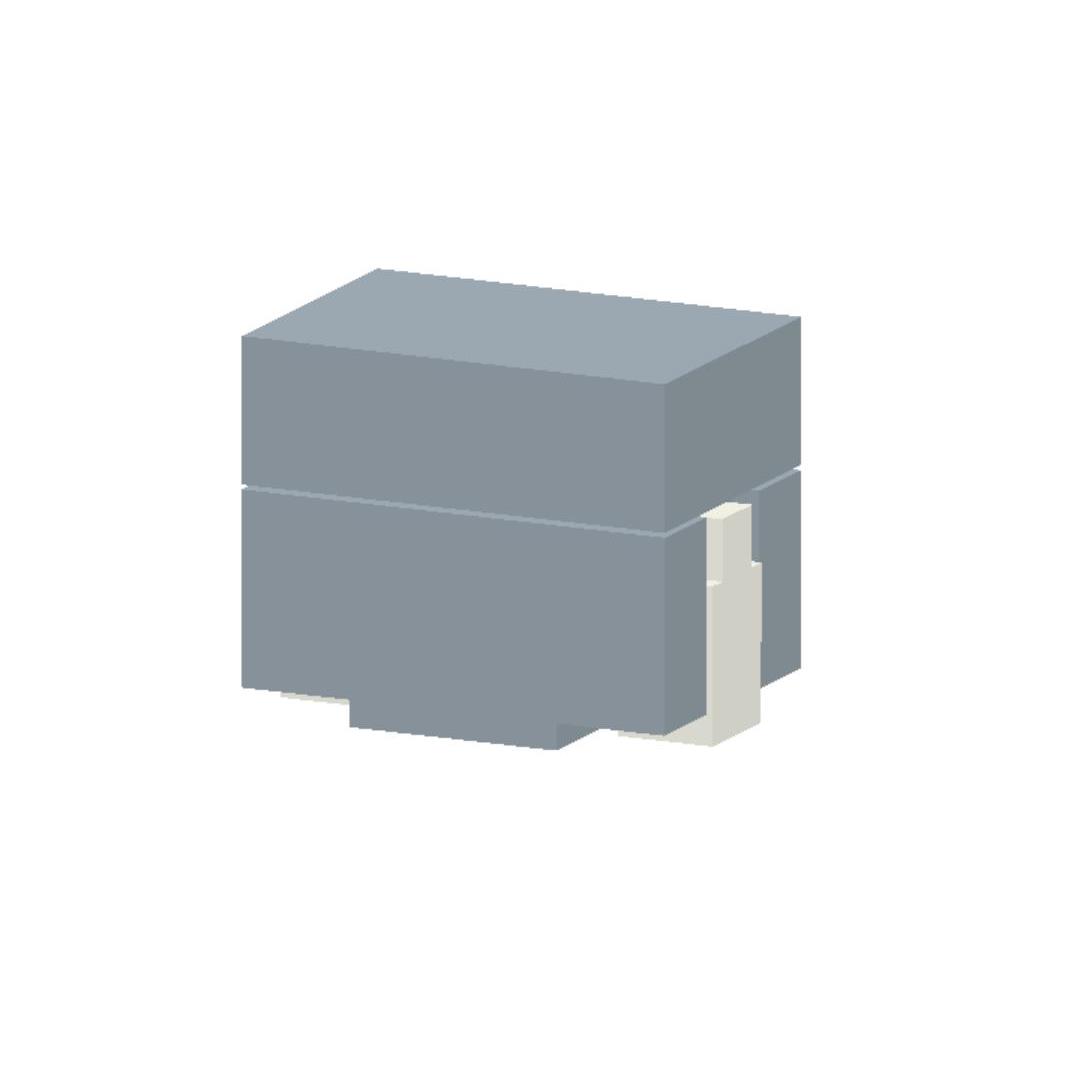

The HCB118080S-181 is a fixed surface-mount power inductor from the Delta Electronics HCB series. It features an inductance of 180 nH, a saturation current of 72 A, and a DC resistance of 0.17 mΩ. The component operates at 100 kHz with a 1 V test signal. Designed for high-current applications, it utilizes a shielded structure to minimize electromagnetic interference.
Fixed Inductors Feature Summary
- High current handling capability suitable for demanding power delivery networks
- Shielded magnetic structure reduces external electromagnetic interference
- Low DC resistance design minimizes conduction losses
Fixed Inductors Applications
- CPU and GPU voltage regulator modules
- Point-of-load conversion stages
- Server and workstation power supplies
Fixed Inductors Procurement Notes
Verify manufacturer identification as sources list both Cyntec and Delta Electronics for this part number. Confirm datasheet specifications match required electrical parameters. Ensure RoHS compliance documentation is available. Check packaging options such as cut tape or reel availability against production needs.
Fixed Inductors Selection Notes
Select based on required saturation current and inductance tolerance. Evaluate thermal performance under maximum load conditions. Consider physical footprint compatibility with PCB layout constraints. Compare DCR values against efficiency requirements for the specific power stage design.
Fixed Inductors Part Context
This component belongs to the HCB118080S series of high-current SMT power inductors. The series offers various inductance values ranging from 100 nH to 220 nH while maintaining consistent low DC resistance characteristics. These components are engineered for compact, high-density power electronics applications requiring robust current handling.
Fixed Inductors Replacement Considerations
Compatible substitutes within the same series include HCB118080S-151 (150 nH) and HCB118080S-221 (220 nH). Verify that alternative part numbers meet identical mechanical dimensions and current ratings before implementation.
