HCB1380-361H

Fixed Inductors Overview

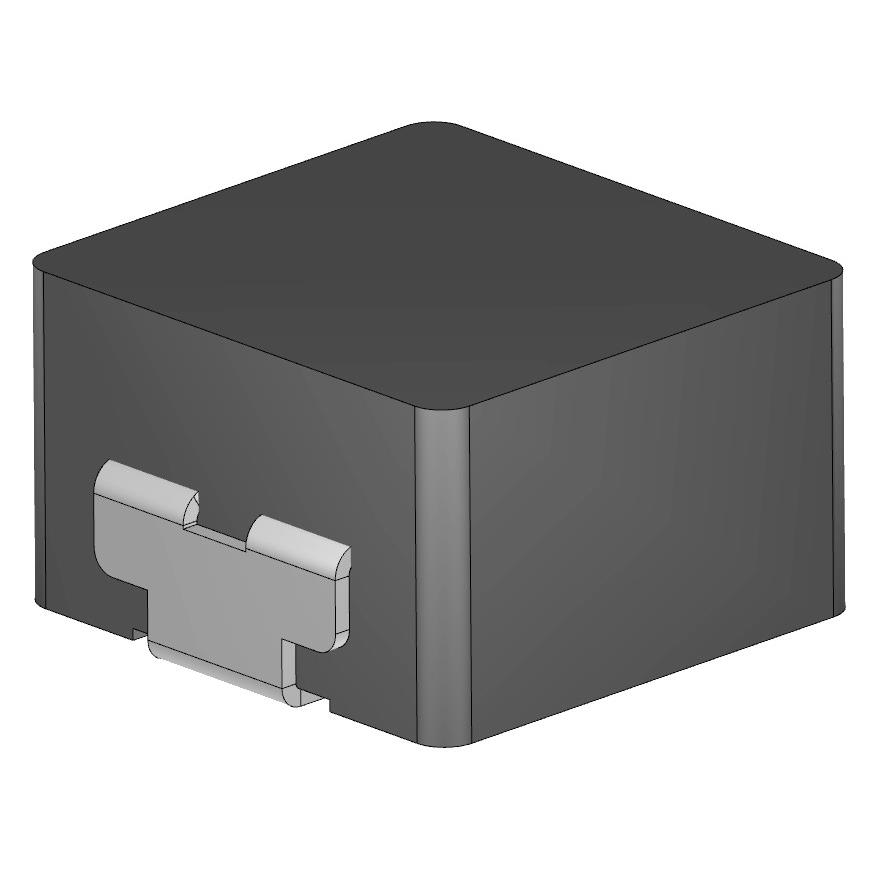

The HCB1380-361H is a fixed surface-mount inductor from the Delta Electronics HCB1380 series. It features an inductance of 360 nH with a tolerance of ±20%. The component has a DC resistance (DCR) of 0.53 mΩ and supports a rated current of 35 A, with a saturation current (Isat) of 35 A. It operates within a temperature range of -40°C to 125°C and is tested at 100 kHz. The unit is unshielded and housed in a nonstandard SMD package measuring approximately 5.15 mm by 5.1 mm.

Fixed Inductors Feature Summary

• High-current capability suitable for power delivery applications
• Low DC resistance for efficient power transmission
• Unshielded design for compact integration
• Wide operating temperature range

Fixed Inductors Applications

• Power supply output filtering
• DC-DC converter input/output stages
• Current sensing circuits
• General purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific manufacturer source, as the HCB1380 series may be produced by Cyntec Co., Ltd. under license or partnership with Delta Electronics. Confirm RoHS3 compliance and MSL level 1 status during sourcing. Ensure the supplier provides official datasheets matching the 360 nH specification and 0.53 mΩ DCR values to avoid counterfeit or mismatched components.

Fixed Inductors Selection Notes

Select this component when high current handling up to 35 A is required alongside low inductance values around 360 nH. The unshielded construction requires careful PCB layout to manage electromagnetic interference. Compare saturation characteristics against load profiles to ensure stable operation under peak conditions. Verify thermal management capabilities given the low DCR and high current rating.

Fixed Inductors Part Context

This part belongs to the HCB1380 series of fixed inductors manufactured by Delta Electronics/Components. The series includes variants with different inductance values such as HCB1380-501H. These components are designed for surface-mount technology and are commonly used in high-power density electronic systems requiring reliable magnetic components.

Fixed Inductors Replacement Considerations

Direct substitutes include other HCB1380 series variants like HCB1380-501H if higher inductance is acceptable. Cross-reference with Cyntec Co., Ltd. equivalents if available. Ensure replacement parts match the 35 A current rating and 0.53 mΩ DCR specifications.
