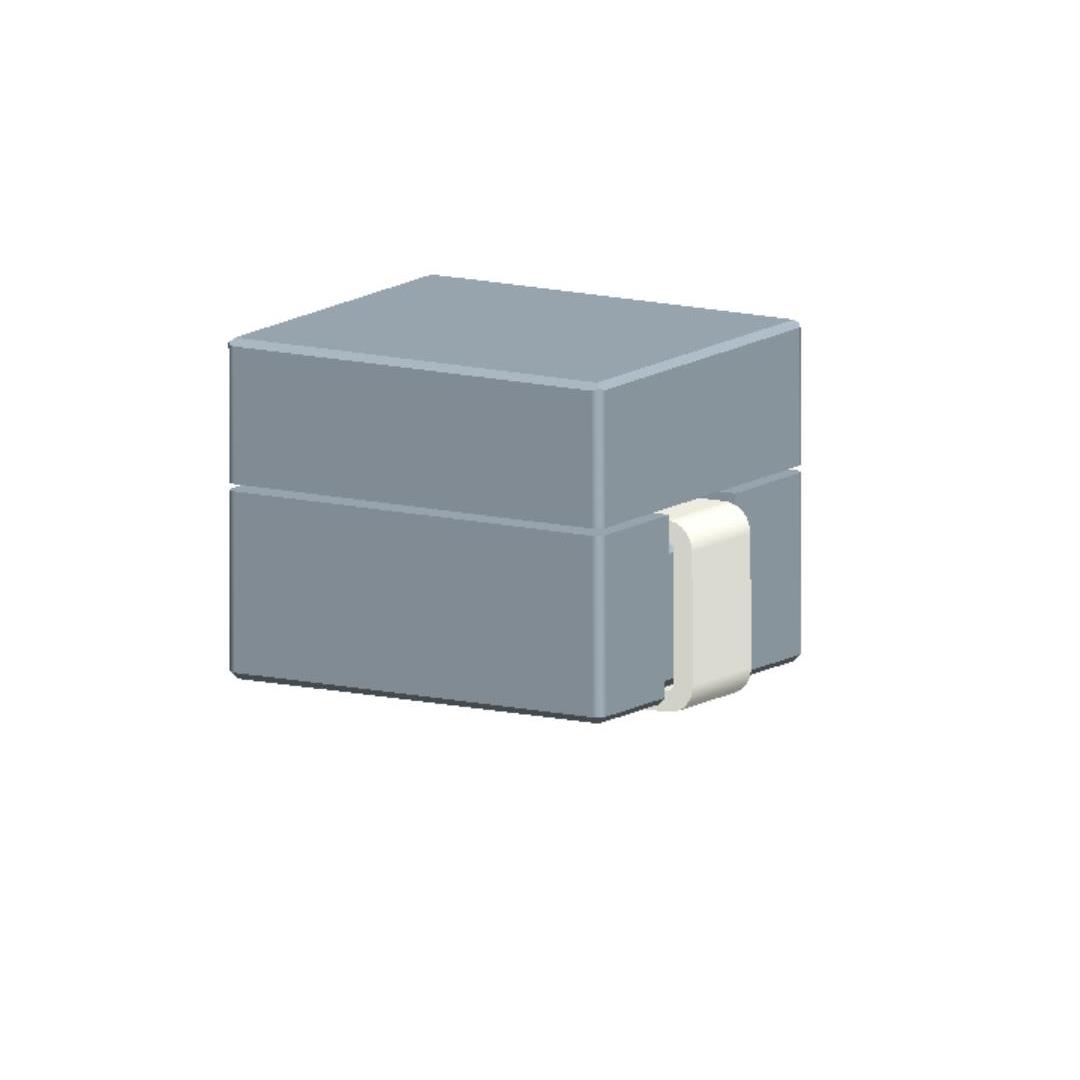

HCB1380-441 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delta Electronics/Components. Its product description is FIXED IND 440NH 50A 0.26MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for HCB1380-441
- Description：FIXED IND 440NH 50A 0.26MOHM SMD
- Series：HCB1380
- Mfr：Delta Electronics/Components
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：440 nH
- Tolerance：±20%
- Current Rating (Amps)：50 A
- Current - Saturation (Isat)：34A
- Shielding：Unshielded
- DC Resistance (DCR)：0.26mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.512" L x 0.512" W (13.00mm x 13.00mm)
- Height - Seated (Max)：0.315" (8.00mm)
- Features：-
Fixed Inductors datasheet and documents for HCB1380-441
Fixed Inductors Overview
The HCB1380-441 is a fixed surface-mount inductor manufactured by Delta Electronics/Components. It features an inductance of 440 nH and supports a current rating of 50 A with a DC resistance of 0.26 mOhm. The component utilizes a nonstandard package suitable for high-current applications.
Fixed Inductors Feature Summary
- High current handling capability for power supply circuits
- Low DC resistance for improved efficiency
- Surface-mount design for automated assembly
Fixed Inductors Applications
- Portable devices
- Cloud computing equipment
- Automotive systems
- IoT infrastructure
Fixed Inductors Procurement Notes
Verify the manufacturer designation, as sources indicate Cyntec as the original manufacturer for this Delta part number. Confirm the specific electrical tolerances and thermal characteristics against the official datasheet before integration to ensure compatibility with system requirements.
Fixed Inductors Selection Notes
Select this component for applications requiring high saturation current and low impedance. Ensure the PCB layout accommodates the nonstandard package dimensions. Compare performance metrics against alternative models like the HCB1380-441L if higher current ratings are necessary.
Fixed Inductors Part Context
This component belongs to the HCB1380 series of fixed inductors from Delta Electronics/Components. The series is designed for passive and magnetic component applications across various market segments including telecom, data centers, and industrial automation.
Fixed Inductors Replacement Considerations
The HCB1380-441L is a documented variant within the same series offering different electrical characteristics. Verify pinout and mechanical fit before substitution.
