HCB1608KF-300T30

Chip Ferrite Bead Overview

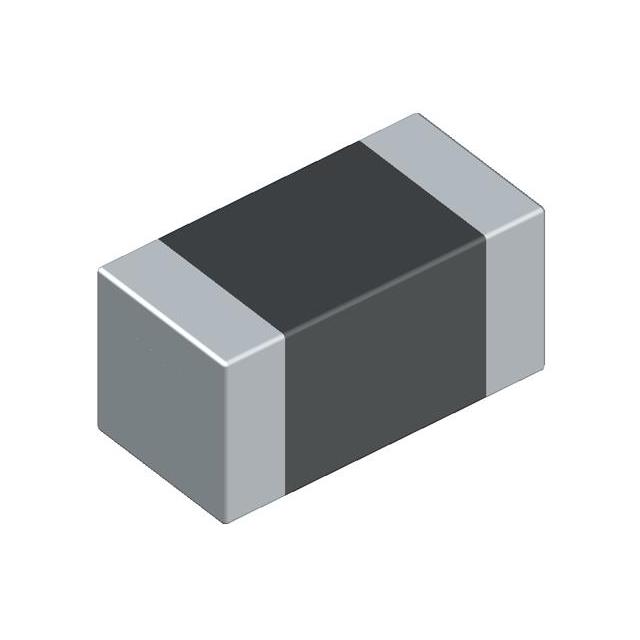

The HCB1608KF-300T30 is a high-current ferrite chip bead manufactured by TAI-TECH Advanced Electronics Co., Ltd. It features a single-line configuration with an impedance of 30Ω at 100MHz and a maximum DC resistance (DCR) of 40mΩ. The component supports a rated current of up to 3A and operates within a temperature range of -55°C to 125°C. Packaged in a standard 0603 (1608 Metric) surface-mount footprint, it is designed for efficient electromagnetic interference suppression in compact electronic circuits.

Chip Ferrite Bead Feature Summary

• High current handling capability suitable for power line applications
• Lead-free construction compliant with environmental standards
• Wide operating temperature range for reliable performance

Chip Ferrite Bead Applications

• Electromagnetic interference (EMI) suppression in power lines
• Signal integrity protection in compact surface-mount designs
• Noise filtering in portable electronic devices

Chip Ferrite Bead Procurement Notes

Verify the manufacturer part number against official TAI-TECH documentation to ensure authenticity. Confirm that the component meets specific lead-free requirements if mandated by project specifications. Cross-reference the impedance and current ratings with circuit design parameters before procurement to ensure compatibility.

Chip Ferrite Bead Selection Notes

Select this component when a low-profile 0603 package is required for high-current EMI filtering. Ensure the circuit's operating current does not exceed the 3A rating to prevent thermal issues. Verify that the 30Ω impedance at 100MHz aligns with the target noise frequency spectrum for effective suppression.

Chip Ferrite Bead Part Context

This component belongs to the HCB series of high-current ferrite beads from TAI-TECH. The series is characterized by its ability to handle significant current loads while maintaining low DC resistance. The HCB1608KF-300T30 specifically utilizes a 0603 case size, balancing physical footprint constraints with robust electrical performance for modern electronics.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TAI-TECH technical support or authorized distributors for verified alternatives that match the 30Ω impedance, 3A current rating, and 0603 package dimensions.
